M+F KEG-Technik M 2/2 KEG Filling Line (2009)

Overview

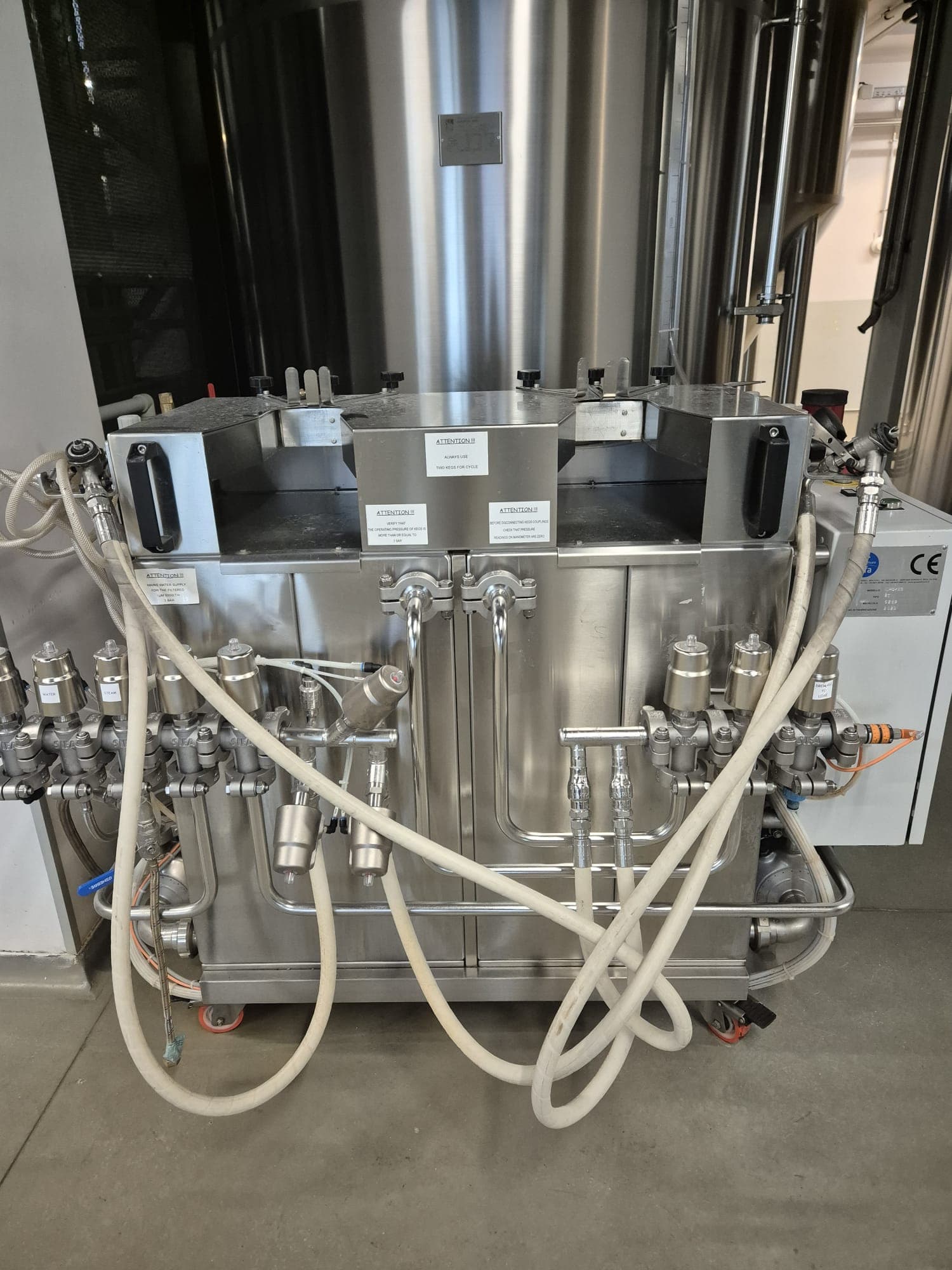

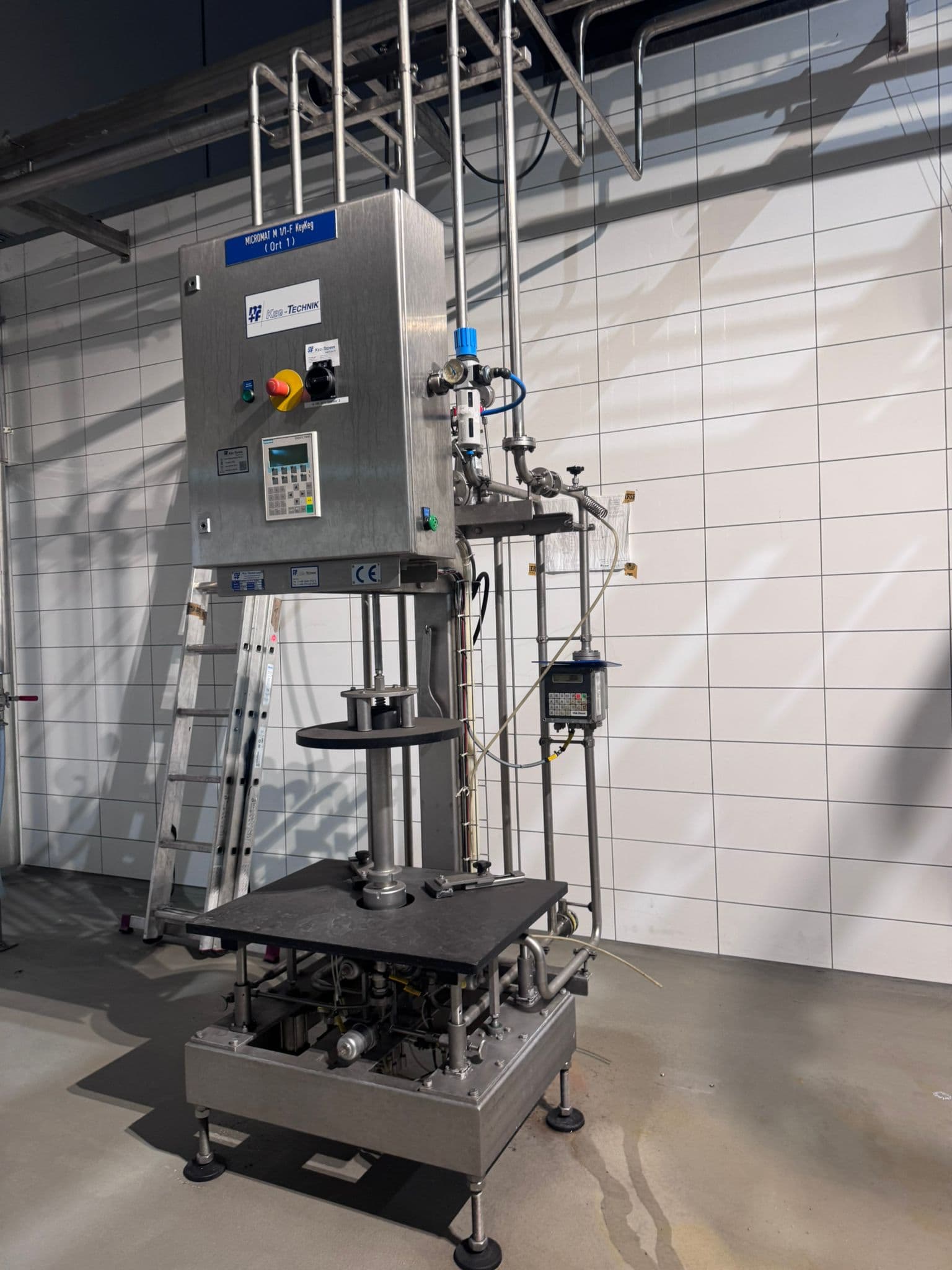

This KEG bottling unit Micromat 2/2-b was built by M+F KEG Technik in 2009. It is composed of a KEG washer and KEG filler. Until dismantling it was used in a brewery in Belgium.

Technical details

• Capacity: 20- 35 keg/h
• KEG type: 20l/30l DIN and EURO
• Fitting type: Typ S
• Station 1: Interior cleaning
• Station 2: Rinsing, sterilization and filling
• Semi automatic system
• with intergrated CIP, CIP tank at the back of the installation
• Dimensions
  • Length: 1,100 mm
  • Width: 1,300 mm
  • Height: 2,200 mm +/- 50 mm
• Electrical connection
  • Voltage: 230/ 400 V, 50 Hz, 3 phases
  • Connected load: 0,5 kW (without tank pumps)
