ABE GLASSPAK 66, Basic Total, SOCO Line for Non-Returnable Glass Bottles (2019)

Overview

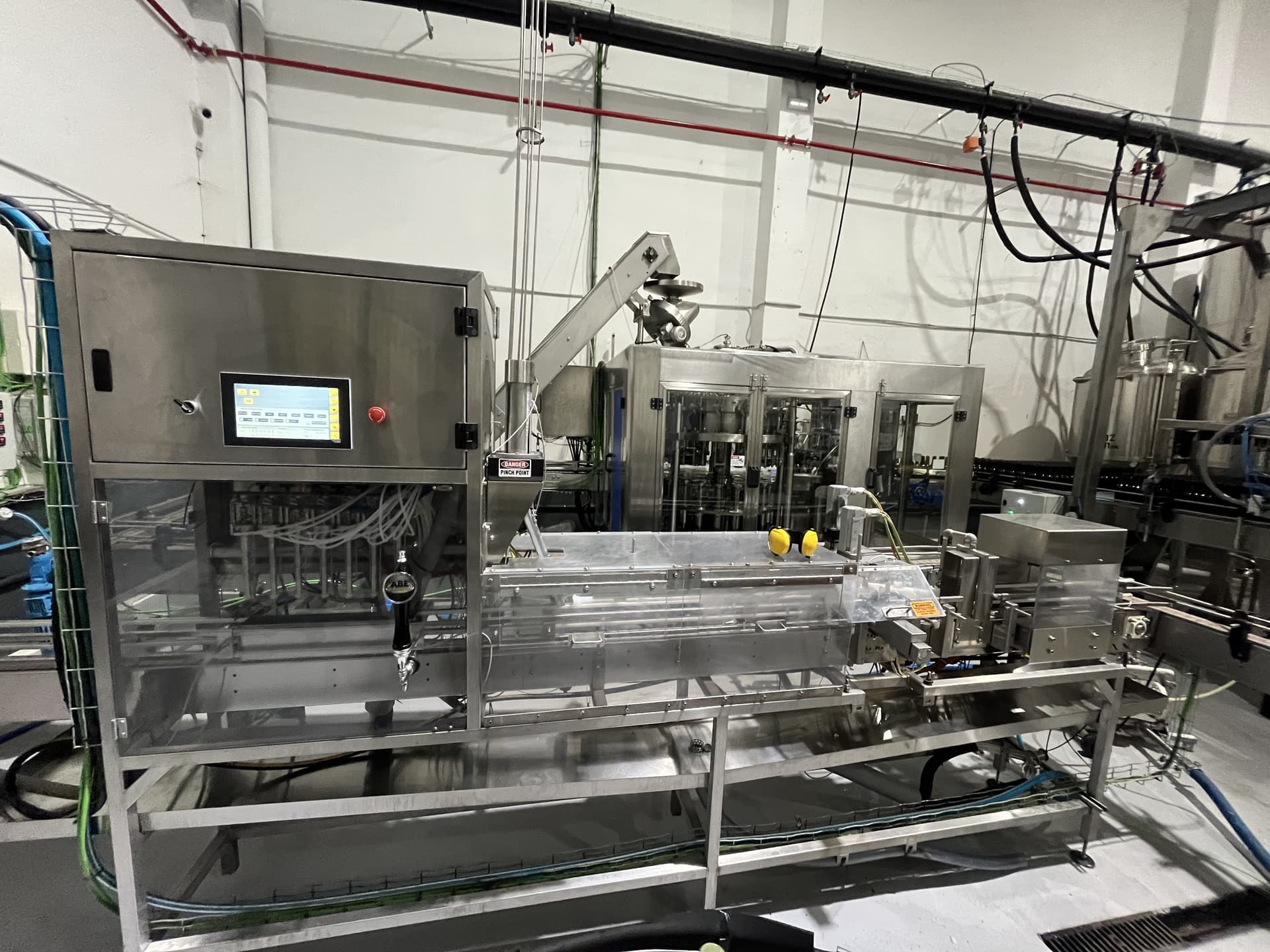

Complete craft-beer bottling line for 0.33 L glass bottles, currently in operation. The heart of the line is an ABE GLASSPAK 66 automatic rotary isobaric monobloc that rinses, fills, crowns and post-rinses up to 4,000 bottles/h. A layer depalletizer feeds the filler; a linear labeller with lot coder, an accumulation table and a case sealer complete the end of line.

Technical data

• Product: beer, glass bottles
• Capacity: up to 4,000 bottles/h at 0.33 L
• Filling: isobaric (counter-pressure), 18 filling valves
• Closure: 26 mm crown caps
• Filler electrical supply: 380-415 V, 3-phase, 50 Hz
• Year of manufacture (filler): 2019

Scope of Delivery

• Bottle depalletizer | Cordero Maquinaria | layer depalletizer with overhead sweep frame, electric hoist and bottle infeed table, 400 V, 50 Hz
• Isobaric filling monobloc | ABE | GLASSPAK 66 | inverting pre-rinser, vacuum and CO2 purge, 18 counter-pressure filling valves, 7-head crown capper, post-rinse and drying, touch panel, SEW 2.2 kW main drive, 4,000 bottles/h | 2019
• Pump cart | ABE | diaphragm pump for product feed | 2019
• Linear labeller | Basic Total | self-adhesive labels, bottle diameters 15-100 mm
• Lot coder | Hitachi | UX-B160W | continuous ink-jet printer
• Accumulation table | rotary, with infeed and accumulation controls
• Case sealer | SOCO System | T-10 | with extendable roller conveyor

Documentation

Operator's manuals V1.2 and V1.3 and parts pictorial V2.2 for the GLASSPAK 66, labeller manual, original invoice.

Condition

Currently in operation.

Availability

Available now. Location: Spain.
