Ningbo Cixi AXW20-4Q, ABB IRB 460 Line for Cans (2025)

Overview

New complete filling and packaging line for beer and carbonated soft drinks in aluminium cans, with an output of 6,000 cans/h at 500 ml and 8,000 cans/h at 330 ml. The line runs from the depalletizer through can rinsing, filling and seaming, tunnel pasteurization, inspection and drying to sleeve labelling, tray shrink wrapping, ABB robot palletizing and pallet stretch wrapping. Two-floor layout: depalletizing on the upper floor, a clamping conveyor lowers the cans to the ground floor for all following machines. All machines are built by Ningbo Cixi except the ABB robot.

Technical data

• Year of manufacture: 2025
• Capacity: 6,000 cans/h at 500 ml Standard, 8,000 cans/h at 330 ml Standard
• Can formats: 330 ml Standard (Ø 66 x 115.2 mm), 500 ml Standard (Ø 66 x 168 mm)
• Lid size: 202 for all formats (plug Ø 52.40 mm)
• Electrical supply: 380 V / 220 V, 50 Hz
• Filler: compressed air and CO2 at 0.4 MPa
• Pasteurizer heating: steam at 0.4 MPa, steam boiler not included

Scope of Delivery

• Depalletizer | XD400 | automatic tier sheet removal and empty pallet stacking, Siemens PLC and touch screen, 10,000 cans/h, 7.8 kW, approx. 8 x 4 x 3.3 m
• Can lowering conveyor | JSJ-A | S-type clamping conveyor from the upper to the ground floor, fits both can formats
• Can rinser | CX-1 | inline spray rinser, 2 sets of can cages, approx. 4,000 mm total length
• Filler-seamer monoblock | AXW20-4Q | 20 filling valves, 4 seaming heads, automatic lubrication, change parts for Ø 66 mm cans, 7.5 kW, approx. 5,000 kg, 3,050 x 2,000 x 2,000 mm
• Tunnel pasteurizer | BG-PLG | 8 temperature zones, 4 plate heat exchangers, 25 kW, 16,000 x 2,400 x 1,800 mm including heat exchangers and piping
• Fill level inspection | YMXS-180G | inline
• Leak inspection | inline internal pressure check
• Can inverters | FGJ | 2 units
• Air knife dryer | CG-1 | 24,000 cans/h, 7.5 kW fan
• Can conveyors | magnetic chain conveyors, approx. 97 m up to the labeller with 13 drives and control cabinet, plus 22 m of belt conveyor from the labeller to the shrink wrapper
• Sleeve labeller | SLM-150 | up to 9,000 cans/h, PM-1800 steam shrink tunnel with steam generator, mandrels for both can formats
• Tray shrink wrapper | BT25 (TPM-250A) | film-only packs and tray with film, up to 25 packs/min, max. pack size 420 x 280 x 350 mm, approx. 3,000 kg
• Robot palletizer | ABB | IRB 460 | 4-axis robot, 110 kg wrist load, 2.4 m reach, vacuum gripper for 6, 12 and 24 packs in both can formats
• Pallet magazine | automatic, holds 8 to 10 empty pallets
• Pallet conveyors | heavy-duty roller conveyors
• Pallet stretch wrapper | automatic inline turntable wrapper, 2,000 mm turntable, loads up to 1,200 x 1,200 x 1,800 mm, 20 to 30 pallets/h, Siemens PLC and touch screen

Condition

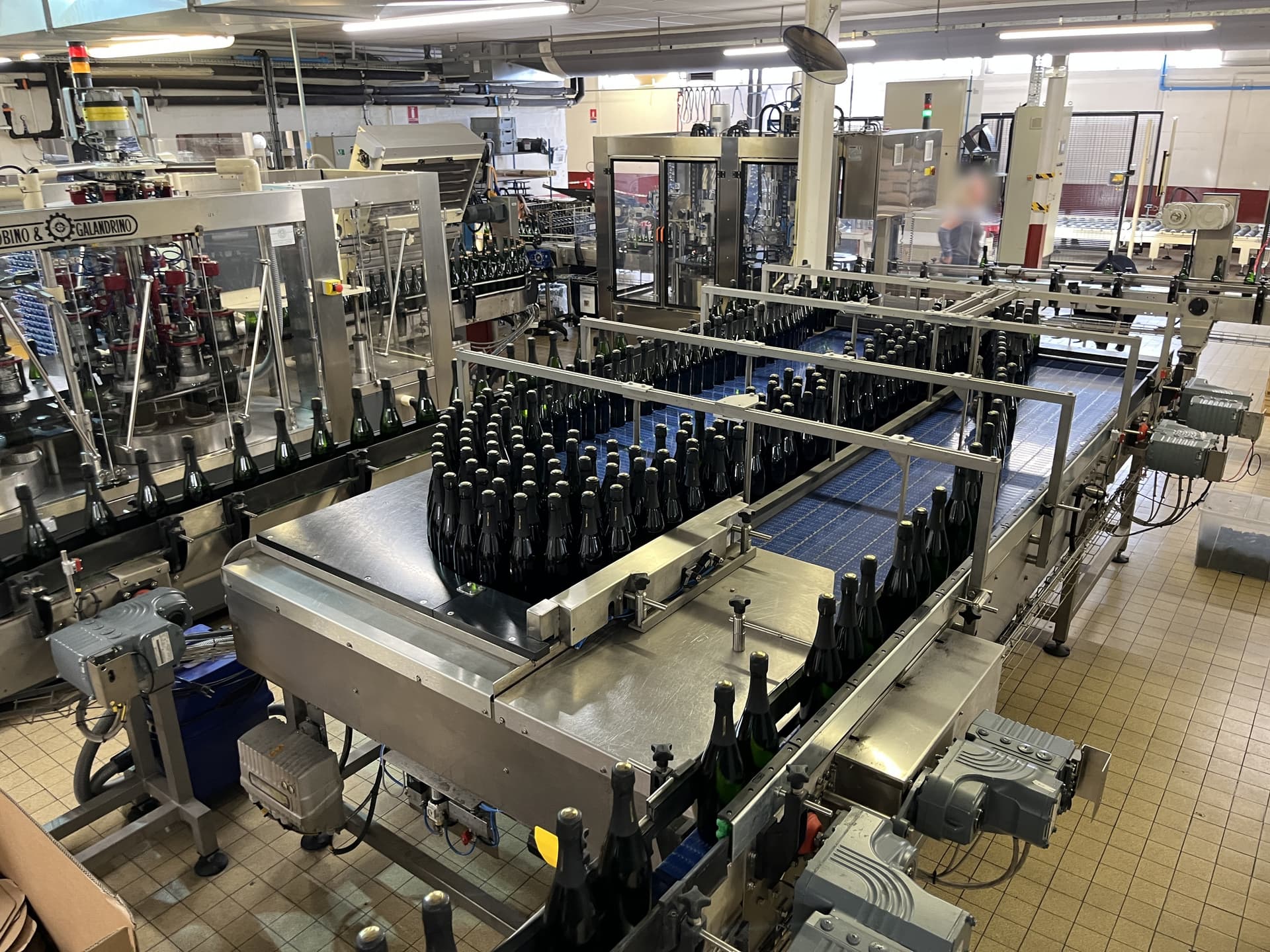

New and unused, packed in export wooden cases. The photos show reference machines of the same models from the manufacturer's documentation.

Availability

Immediately. Location: Serbia.
