Overview

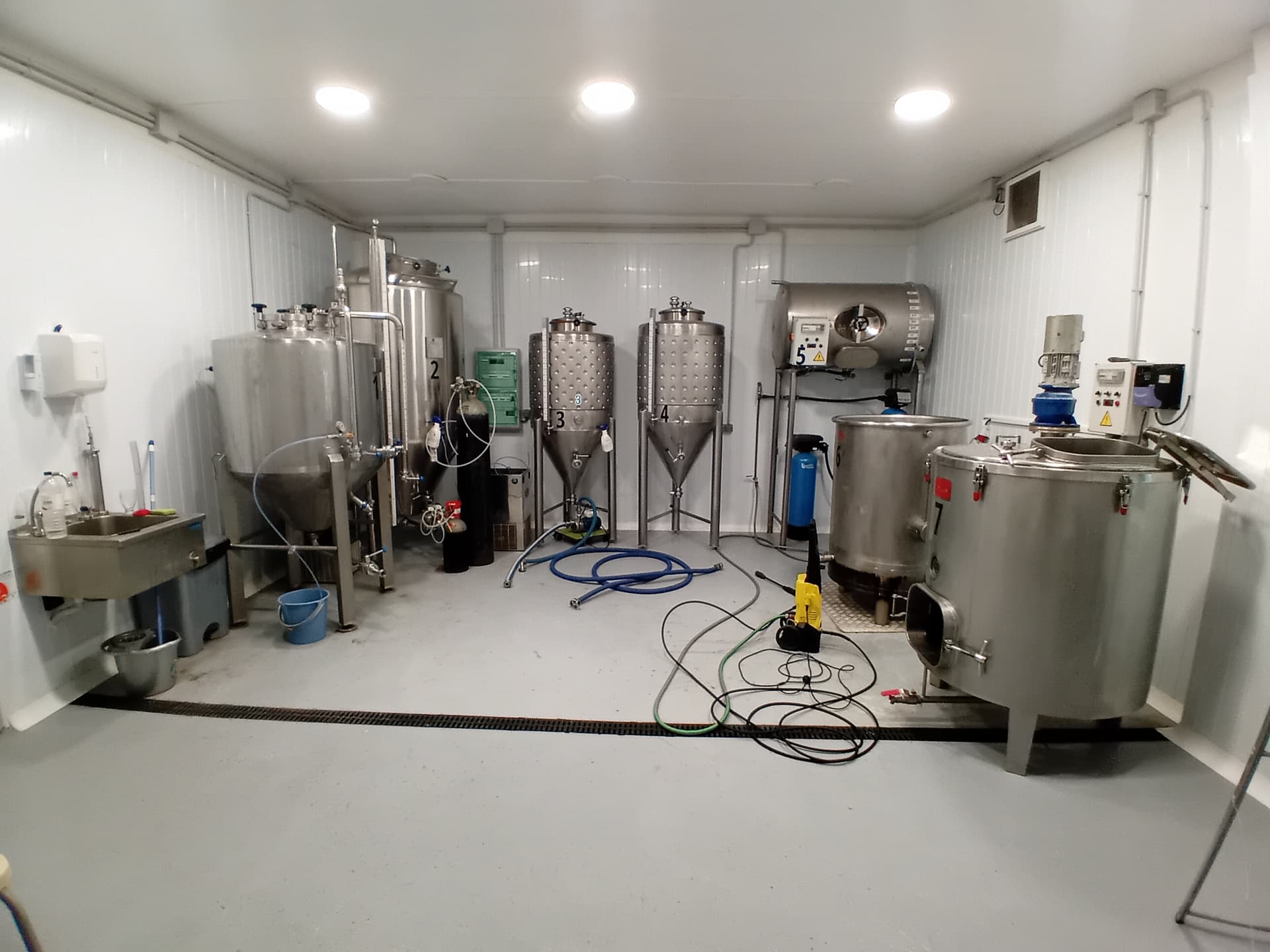

This complete brewhouse and cellar system was manufactured between 2018 and 2021 by several European equipment suppliers including Brewiks, Milan Svoboda, Mercabrewers, Wild Goose, Quantor and others. It features a 5 HL Brewiks brewhouse, a 12 HL fermentation cellar (6 CCTs), CIP stations, a canning line, labelling and coding units, water treatment, air treatment, chiller and full malt-handling equipment, being a turnkey solution for beer production.

Technical data

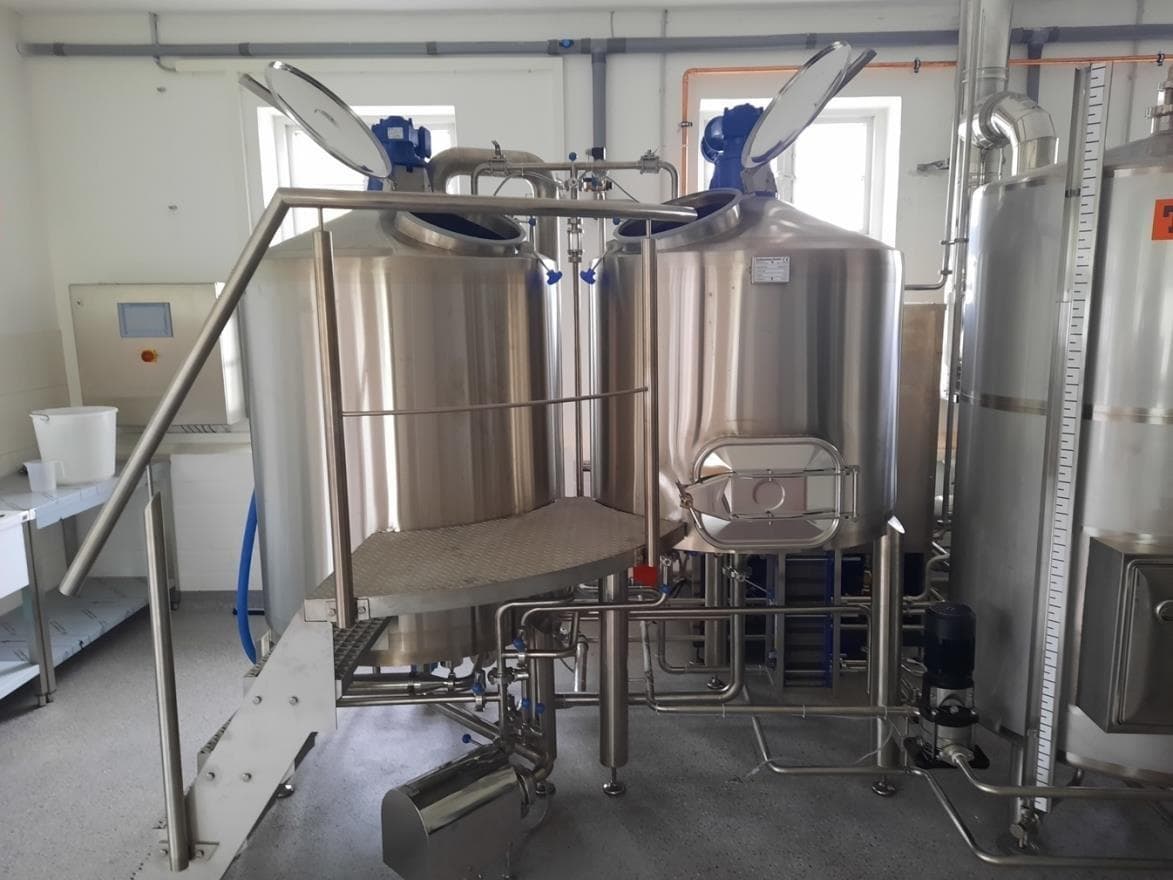

• Brewhouse (Brewiks 500, 2018)
  • Capacity: 5 HL
  • Heating: Electric, 36 kW
• Fermentation Cellar (Svoboda + Mercabrewers, 2018–2021)

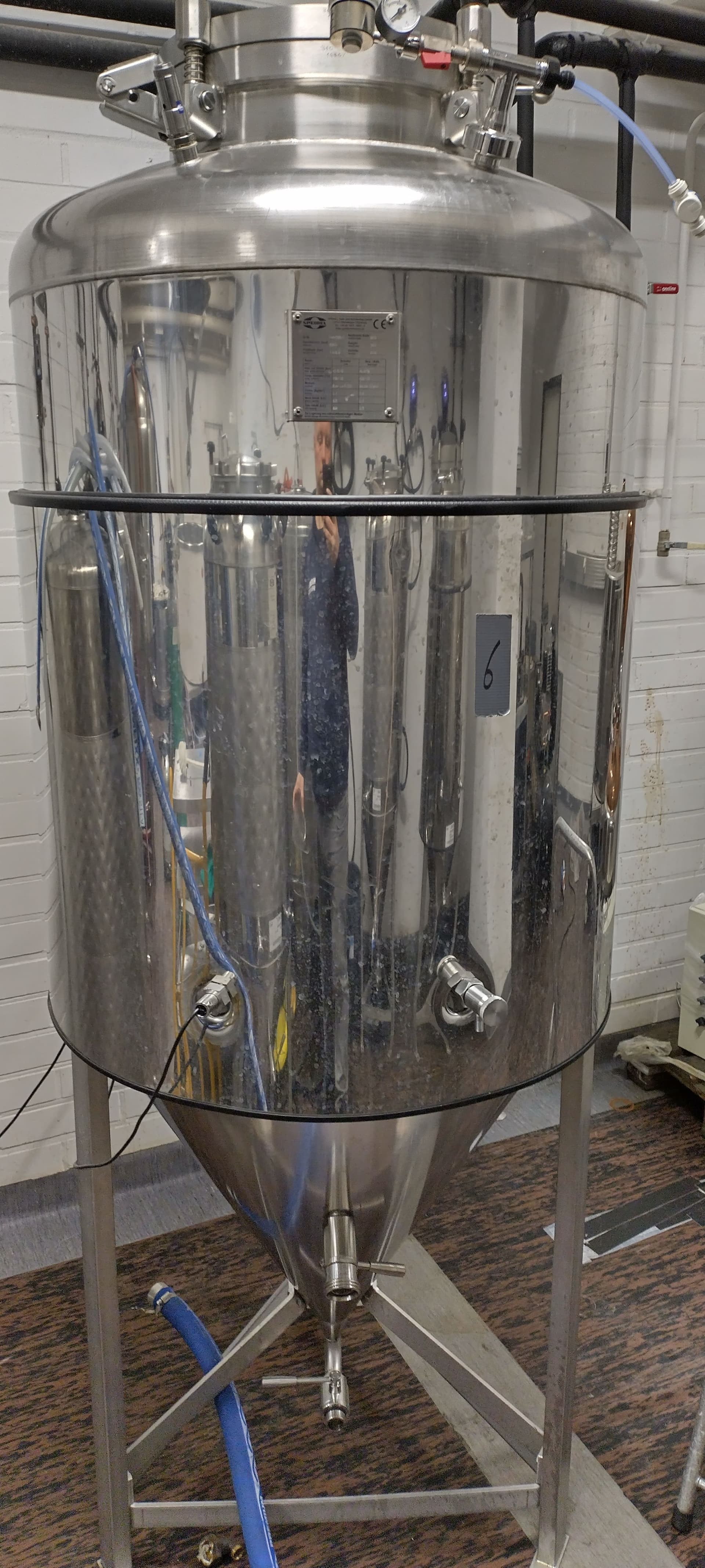

  • 6 CCTs × 12 HL useful capacity
  • Pressure rating: 3 bar
• CIP Stations (Svoboda CIP 100)
  • 2 mobile CIP units
  • Tank capacity: 100 L (alkaline + acid)
• Canning Line (Wild Goose GOSLING, 2021)
  • Semi-automatic
  • Formats: 0.33 L / 0.44 L / 0.50 L
• Cooling (Quantor Chilly MAX 50L)
  • Glycol chiller for CCTs
• General Key Information
  • Power supply (various units): 230–400V, 50 Hz
  • Applications: Brewing, fermentation, can filling

Scope of Delivery

• Brewiks Brewery (5 HL) | Brewiks | Brewiks 500 | 2018 | Electrically heated (36 kW)
• Isobaric CCT | Milan Svoboda | — | 2018 | 12 HL, 3 bar (1/3)
• Isobaric CCT | Milan Svoboda | — | 2018 | 12 HL, 3 bar (2/3)
• Isobaric CCT | Milan Svoboda | — | 2018 | 12 HL, 3 bar (3/3)
• Isobaric CCT | Mercabrewers | — | 2021 | 12 HL, 3 bar (1/3)
• Isobaric CCT | Mercabrewers | — | 2021 | 12 HL, 3 bar (2/3)
• Isobaric CCT | Mercabrewers | — | 2021 | 12 HL, 3 bar (3/3)
• CIP station | Milan Svoboda | CIP 100 | — | Mobile; 100 L alkaline + 100 L acid (1/2)
• CIP station | Milan Svoboda | CIP 100 | — | Mobile; 100 L alkaline + 100 L acid (2/2)
• Hop Cannon + Bag Filter | 3M | Series ME 01MET2 | — | 30 L capacity
• Glycol cooler | Quantor | Chilly MAX 50L | — | Operational, heavily used
• Canning line | Wild Goose | Quick Change GOSLING | 2021 | Semi-automatic; incl. formats 0.33 / 0.44 / 0.50 L
• Can Rinser + Gravity Feeder | Zomerdijk Engineering | TWIST Rinser | — | For 0.33 / 0.44 / 0.50 L
• Labeler + Printer | EME (Crafted Goose) | Jem-110-S2 | — | Automatic; integrated printer
• Thermal inkjet printer | Rynan | R20 (CM220) | — | Batch and date printing
• Air compressor | ABAC | 50 Hp2 | 2020 | 10 bar; 50 L tank
• Dehumidifier | ABAC | COOL21 (CO) | — | 16 bar; 350 L/min
• Reverse osmosis system | AquaControlada | — | — | 2 units (drinking & process water)
• Water tank | ROTH | — | — | 2× 750 L
• Malt mill | Sommer | Maltman 220 | — | Precision mill
• Sieve shakers + sieves | RETSCH | AS200 Basic | — | Complete sieve set for malt analysis
