Overview

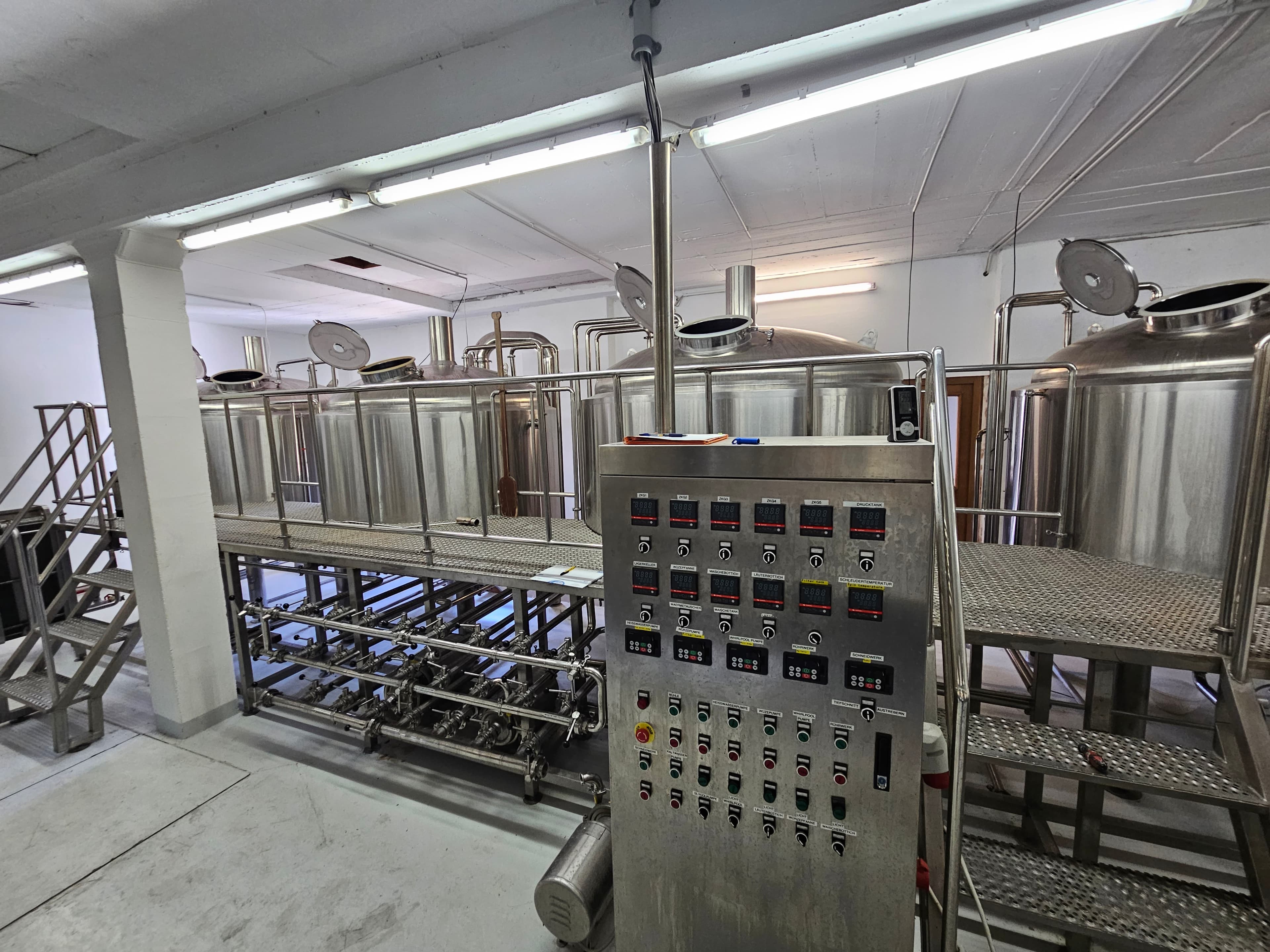

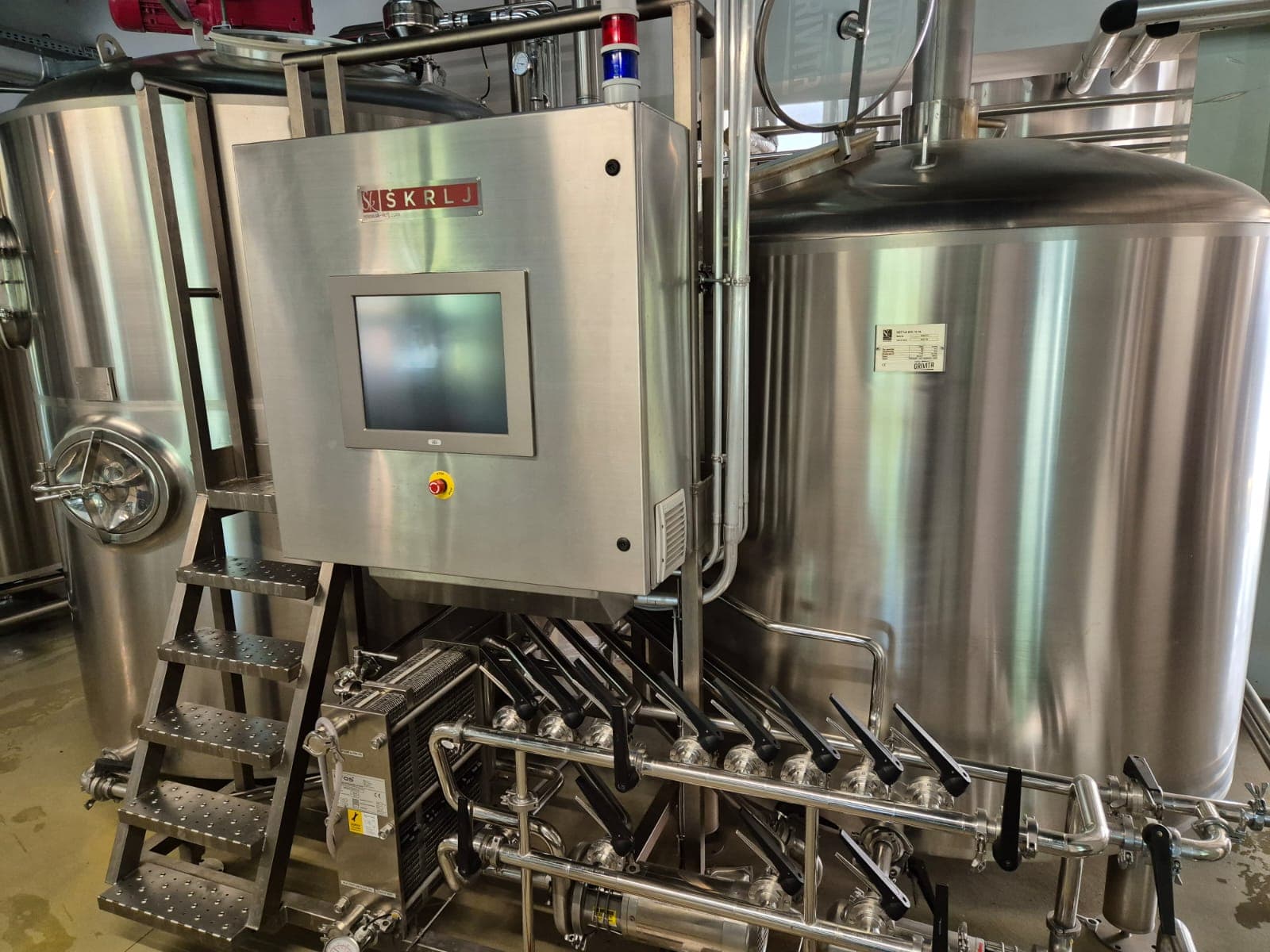

This brewhouse was manufactured in 2022 by the Chinese company JingYing. It is being sold due to the expansion of the current brewery. The brewhouse is a 3-vessel tower system, steam heated, and in very good, well-maintained condition. The system is still under functional warranty upon delivery and immediately available.

Technical data

• Capacity: 10 hl per batch
• Configuration: 3-vessel brewhouse (Mash tun/boil kettle, Lauter tun, Whirlpool)
• Heating system: Steam heated
• Control system: Semi-automatic PLC (controls pumps, heating, agitators, temperature profiles, recipe selection)
• Fermentation: 10 cylindroconical tanks, 20 hl each (2 bar, cooling jackets, CIP, manometer, sampling valves)
• Cooling: Chiller unit, 6 HP (~4.5 kW mechanical, ~12–18 kW cooling capacity), glycol-water system, range −4 to +10 °C
• Steam generator: Electrically heated, 72 kW (≈1 °C/min for 10 hl water)
• Auxiliary: Cold water tank 30 hl (insulated, cooling jacket), malt mill 300 kg/h, CIP equipment, Tri-Clamp fittings, hoses, valves, gaskets, sampling devices
• Additional: Set of 10 solenoid valves (one per fermentation tank, automated control for individual cooling via shared glycol loop)
• Brewhouse
  • Mash tun diameter 1460 mm
  • Total height incl. switch cabinet/control 2860 mm (this is the highest point of the system)
  • Platform height 1100 mm (the operator platform can easily be shortened here if necessary)
• ZKT's 10 x 20 hl
  • Diameter 1510 mm
  • Total height 3300 mm

Scope of Delivery

• Brewhouse | JingYing | 10 hl, 3-vessel tower system | 2022 | Steam heated, with PLC semi-automatic control
• 10x Fermentation tanks | JingYing | Cylindroconical 20 hl | 2022 | 2 bar pressure, cooling jackets
• Whirlpool | JingYing | 10 hl | 2022 | Tangential inlet
• Cold water tank | JingYing | 30 hl | 2022 | Insulated with cooling jacket
• Malt mill | JingYing | 300 kg/h | 2022
• Steam generator | JingYing | Electric, 72 kW | 2022
• Chiller | JingYing | 6 HP (~12–18 kW cooling) | 2022 | Glycol system −4 to +10 °C
• Platform and piping | JingYing | — | 2022 | Complete with pumps, sight glasses, valves, CIP armatures
• Accessories | JingYing | — | 2022 | Tri-Clamp fittings, hoses, couplings, gaskets
• Solenoid valve set | JingYing | — | 2022 | 10 pcs, for individual fermentation tank cooling
