Krones Pressant Universal 1N Glass Depalletizer (2023)

Overview

This Krones Pressant Universal 1N is a container sweep-off depalletizer for glass bottles, built in 2023. It takes the full pallet, lifts each container layer off the stack and sweeps it onto the discharge table, while a separate handling module removes the layer pads and the empty pallets.

The machine is built in the Krones enviro design for reduced energy and media consumption. Lifting unit, sweep-off station, layer centring and the 15-lane discharge table all run on SEW servo drives, layer scanning is pneumatic, and the packing material handler works with a suction gripper frame and a vacuum ejector. Operation is from a Krones touch terminal with a production dashboard and a separate control page for the pallet conveyor; the throughput display is set to 14,000 containers per hour. The machine handles several container formats on flat pallets of 1,200 x 1,000 mm.

Technical data

• Manufacturer: Krones
• Model: PRESSANT UNIVERSAL 1N
• Machine type: container sweep-off depalletizer
• Year of manufacture: 2023
• Application: depalletizing of glass bottles, several formats
• Container throughput: 14,000 containers/h (machine setting)
• Pallet format: flat pallets 1,200 x 1,000 mm
• Container conveyor height: 1,300 mm
• Sweep-off station: raised design for container heights above 320 mm
• Discharge table: 90° connection, 3,600 mm table length, 15 steel conveyor chains, servo drive (SEW)
• Lifting unit: servo drive (SEW), maintenance unit on the columns
• Layer scanning: pneumatic
• Layer centring: lateral and centring beam servo-motorised, pneumatic front flap
• Stack fixing: lateral, motor-driven; pneumatic transfer plate
• Packing material handling: 1 module with pivoted arm, suction gripper for layer pads and complete layers, vacuum ejector, pallet gripper (1 DIN size), motorised gripper frame rotation
• Magazines: two magazine and stacking areas, free-standing chute for inverted trays
• Central lubrication: Lincoln Quicklub, automatic pump
• Pneumatics: Festo, minimum operating air pressure 5 bar, air connection G 1/2"
• Power supply: 400 / 230 V, 3 Ph, 50 Hz, 57 A
• Overall dimensions depalletizer: approx. 6,000 x 3,500 x H 5,620 mm
• Overall dimensions complete installation: approx. 15,900 x 9,600 x H 5,620 mm
• Finish: RAL 5013 cobalt blue columns, RAL 9018 papyrus white and RAL 7037 dusty grey machine parts
• CE marked

Scope of delivery

• Krones PRESSANT UNIVERSAL 1N sweep-off depalletizer
• Infeed roller conveyor, stainless steel rollers, roller width 1,350 mm, approx. 1,820 x 1,450 x 1,030 mm
• Stainless steel platform with chain conveyor, approx. 5,000 x 2,500 x 1,680 mm
• Krones PALCO pallet conveyor and Krones SYNCO container transport
• Outfeed conveyors, stainless steel belts, belt widths 1,280 mm and 250 mm, approx. 5,200 x 1,700 x 1,420 mm and 5,700 x 500 x 1,420 mm
• Krones operator terminal with production dashboard
• Control cabinets with SEW servo drives, safety technology and central lubrication
• Machine guarding with safety gates and locking pawl on the sweep-off station
• OEM machine data sheet and dimension drawing

Condition

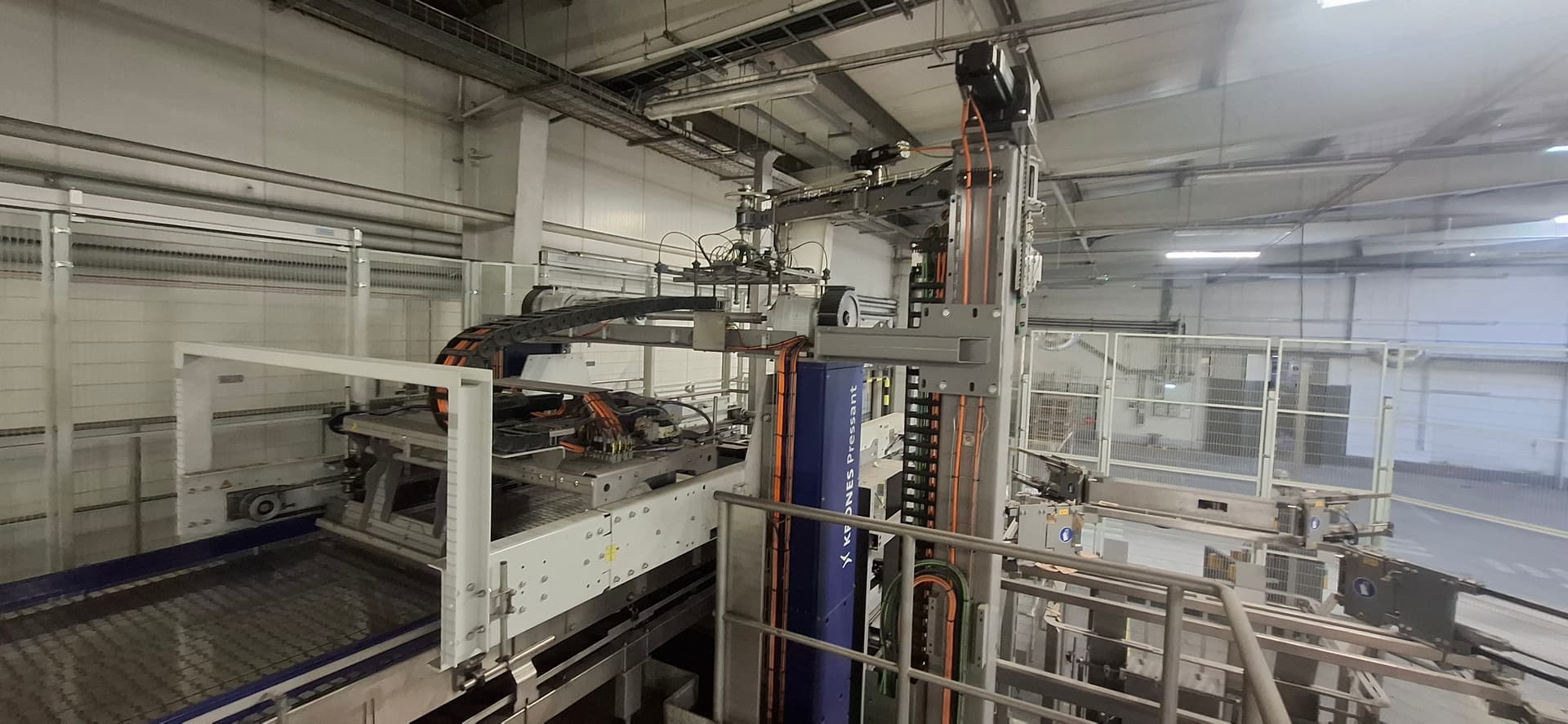

Used, technically complete, built in 2023. The machine is still installed and under power at its production site; the photographs show it in the installed state.

Availability

Immediately. The machine will be dismantled and relocated to Germany. Viewing by arrangement; dismantling, loading and transport can be quoted on request.
