Rink KM 690/4K Decapper (2012)

Overview

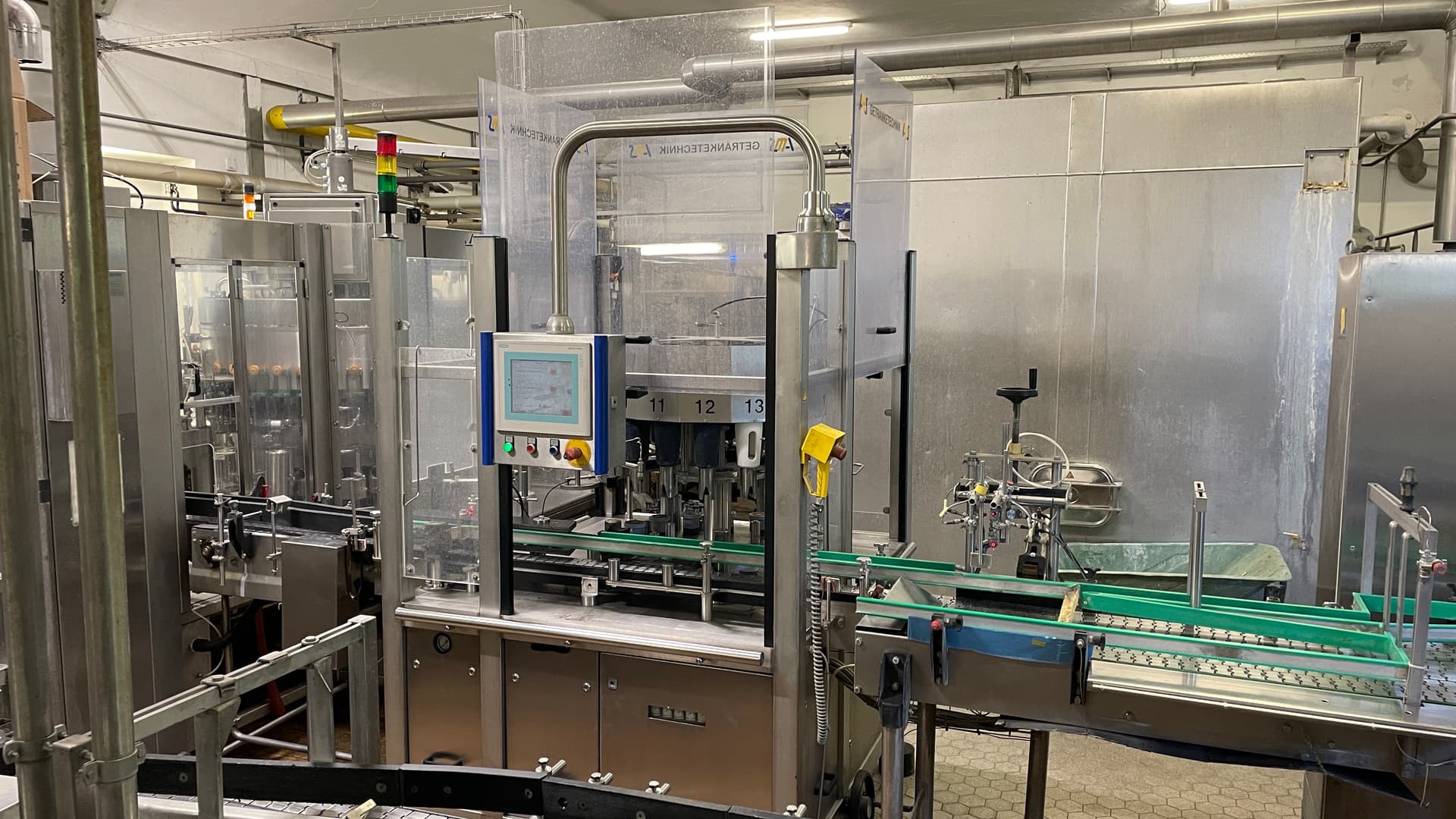

This RINK KM 690/4K empty bottle unscrewing machine, manufactured in 01/2012, is designed for the automatic removal of screw caps from returnable empty bottles directly inside the crate. The machine is installed in the empty bottle infeed section and removes screw closures before the bottles are transported further towards the bottle washer. The machine is equipped with 4 units, each with 4 x 3 unscrewing heads, allowing multiple bottles to be processed in parallel inside the crate. In operation, the crates are transported continuously under the unscrewing sections. The head units lower cyclically onto the bottles, unscrew the closures and then return to the upper home position. The machine is operated via a Siemens SIMATIC Panel touch display integrated into the stainless steel control cabinet.

Technical Data

• Manufacturer: RINK GmbH & Co. KG

• Machine Type: Empty bottle unscrewing machine

• Model / Type: KM 690/4K

• Year of Manufacture: 01/2012

• Application: Unscrewing / removal of screw caps from returnable empty bottles inside crates

• Equipment: 4 units, each with 4 x 3 unscrewing heads

• Operation: Automatic crate transport under cyclic lowering unscrewing units

• HMI / Control: Siemens SIMATIC Panel touch display

• Signal Tower: Red / orange / green status light

• Safety: Stainless steel enclosure with transparent sliding doors and safety warning labels

• Electrical Supply: 230 / 400 V, 50 Hz

• Connected Load: 18 kVA

• Current: 25 A

• Condition: Used, installed in industrial returnable bottle line
