Overview

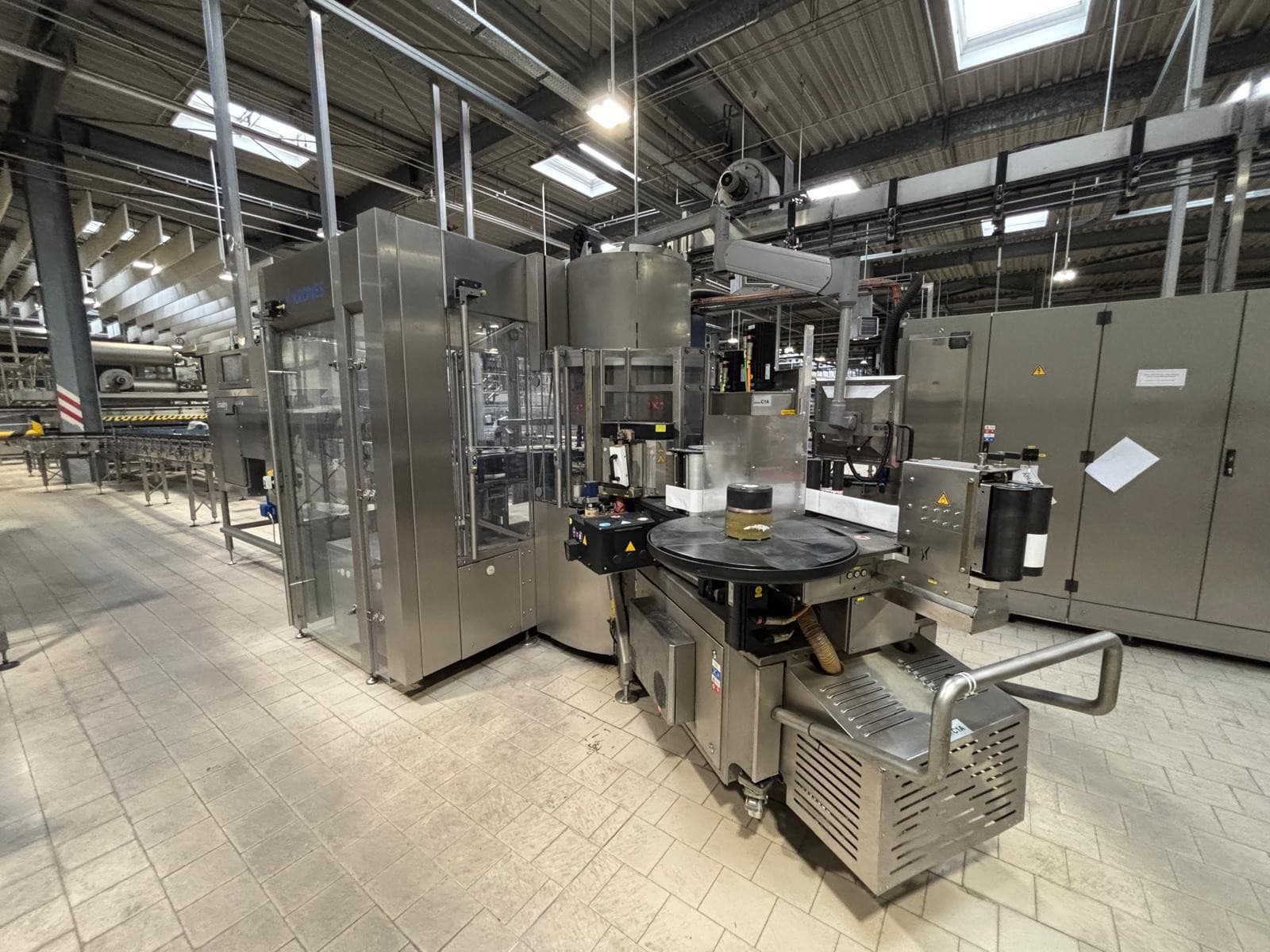

This roll-fed hot glue labelling machine was manufactured by ACMI (Italy). The Opera PRO 400 RF is designed for high-capacity beverage production lines, processing both cylindrical and shaped containers in glass or PET. It applies wrap-around OPP labels at very high speeds, ensuring excellent efficiency and reliability. The machine is equipped with modern features such as automatic label splicing, brushless motor-driven infeed screws, and remote assistance capability. It is currently available for sale.

Technical data

• Capacity: Nominal 48,000 bph (max. mechanical speed: 58,000 bph)
• Formats: Cylindrical and shaped containers, PET or glass, e.g. 500 ml PET round bottle (wrap-around OPP label)
• Machine diameter: 1,320 mm
• Pitch: 125.60 mm

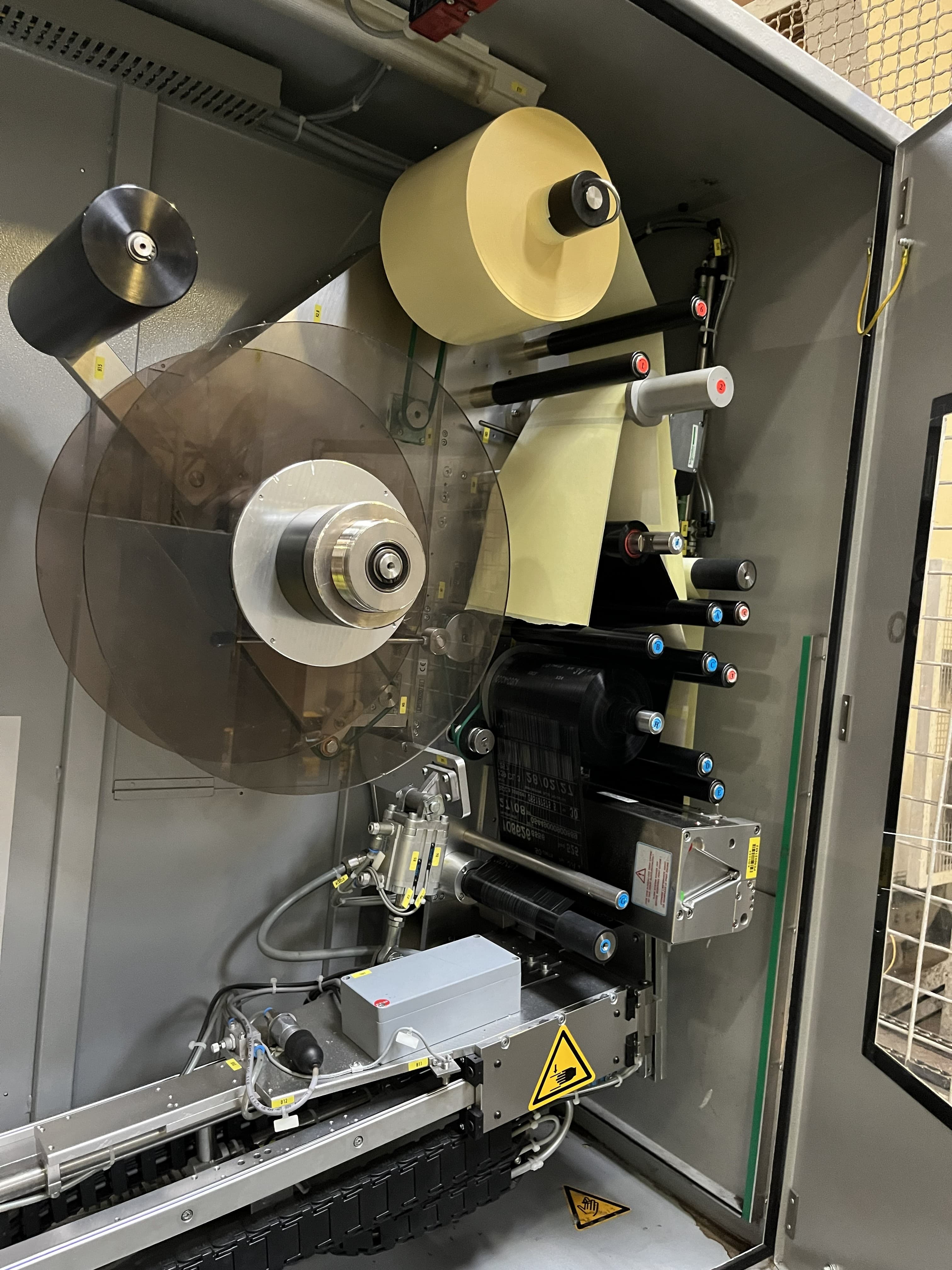

• Label type: Roll-fed OPP hot glue wrap-around labels (30–40 µm thickness, 30–175 mm height)
• Platform rotation: Motorized belt (R version)
• Main motor: Servomotor
• Electrical connection: 400 V (+/-10%), 50 Hz, 3PH + N + PE
• Conveyor height: 1,100 mm
• Conveyor chain: Plastic flat-top 82.5 mm, thickness 4 mm
• Low voltage controls: 24 V DC
• Environmental conditions: 5–45 °C; altitude up to 1,000 m
• Control cabinet: Stainless steel with integrated air conditioner
• Standard lubrication: Centralized, manual
• Additional features: Automatic label splicing, double reel support, quick-release platforms, detection device for fallen bottles, remote assistance
