DUETTI, GAI, ROBINO & GALANDRINO WIN&TECH Non-Returnable Glass Bottles (2022)

Overview

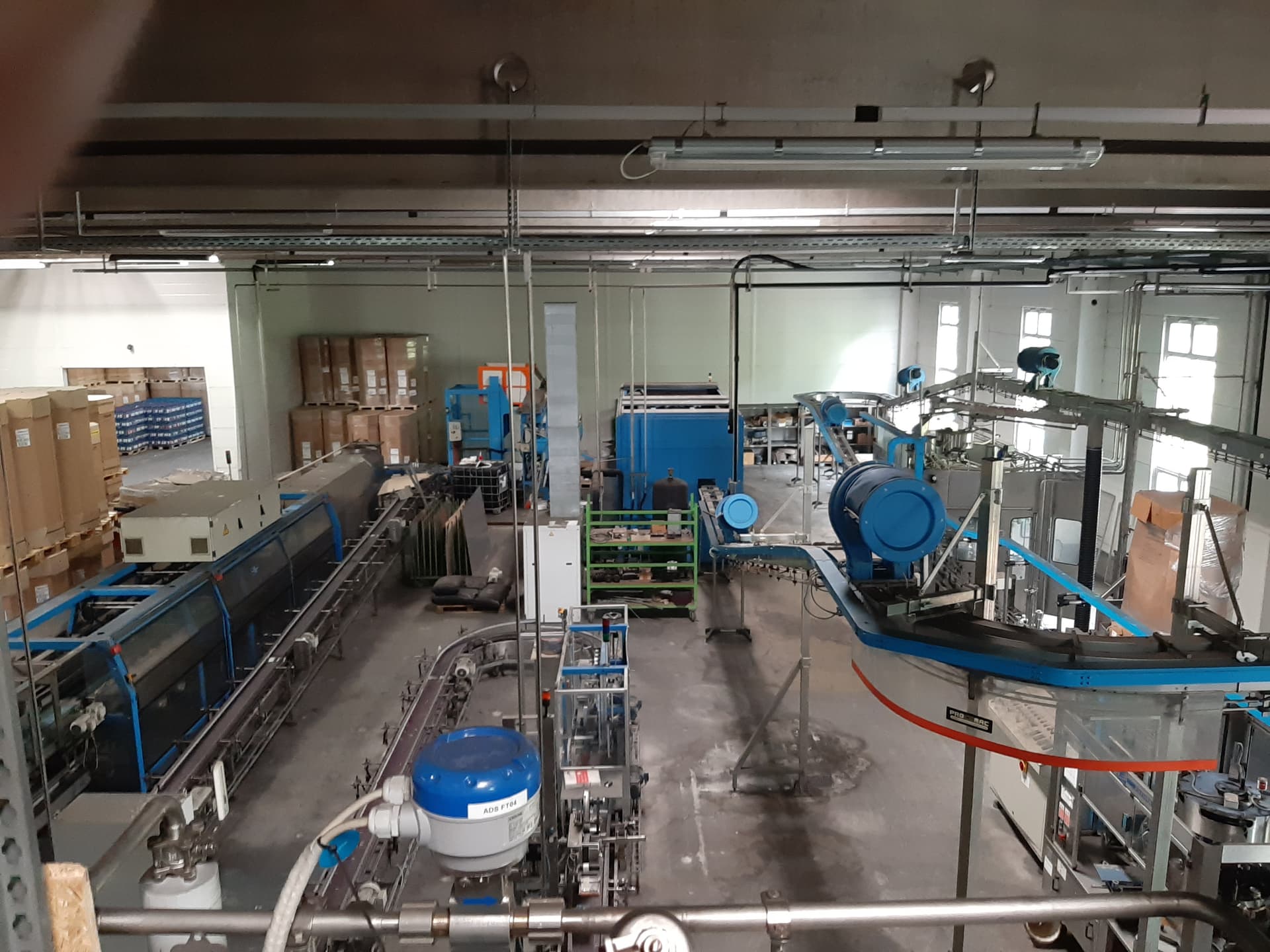

This complete isobarometric filling line for sparkling wine was manufactured in 2022 by Italian manufacturers DUETTI, GAI, ROBINO & GALANDRINO, WIN&TECH and MAKRO. It is designed for premium sparkling wine in glass bottles and includes depalletizing, rinsing, isobaric filling, capping, wirehooding, capsuling, labelling, CIP and filtration.

The line is still in production, has approx. 2,100 operating hours and can be visited on request. It will be available end of March 2026.

Technical data

• Application: Sparkling wine (glass bottles)
• Capacity:
  • Up to 4,500 bph
• Formats & Speeds:
  • 0.187 L: 4,500 bph (4°C & 15°C)
  • 0.375 L: 4,500 bph (4°C & 15°C)
  • 0.750 L: 4,000 bph (4°C) / 2,900 bph (15°C)
  • 1.500 L: 2,000 bph (4°C) / 1,500 bph (15°C)
• Operating hours: 2,100

Scope of Delivery

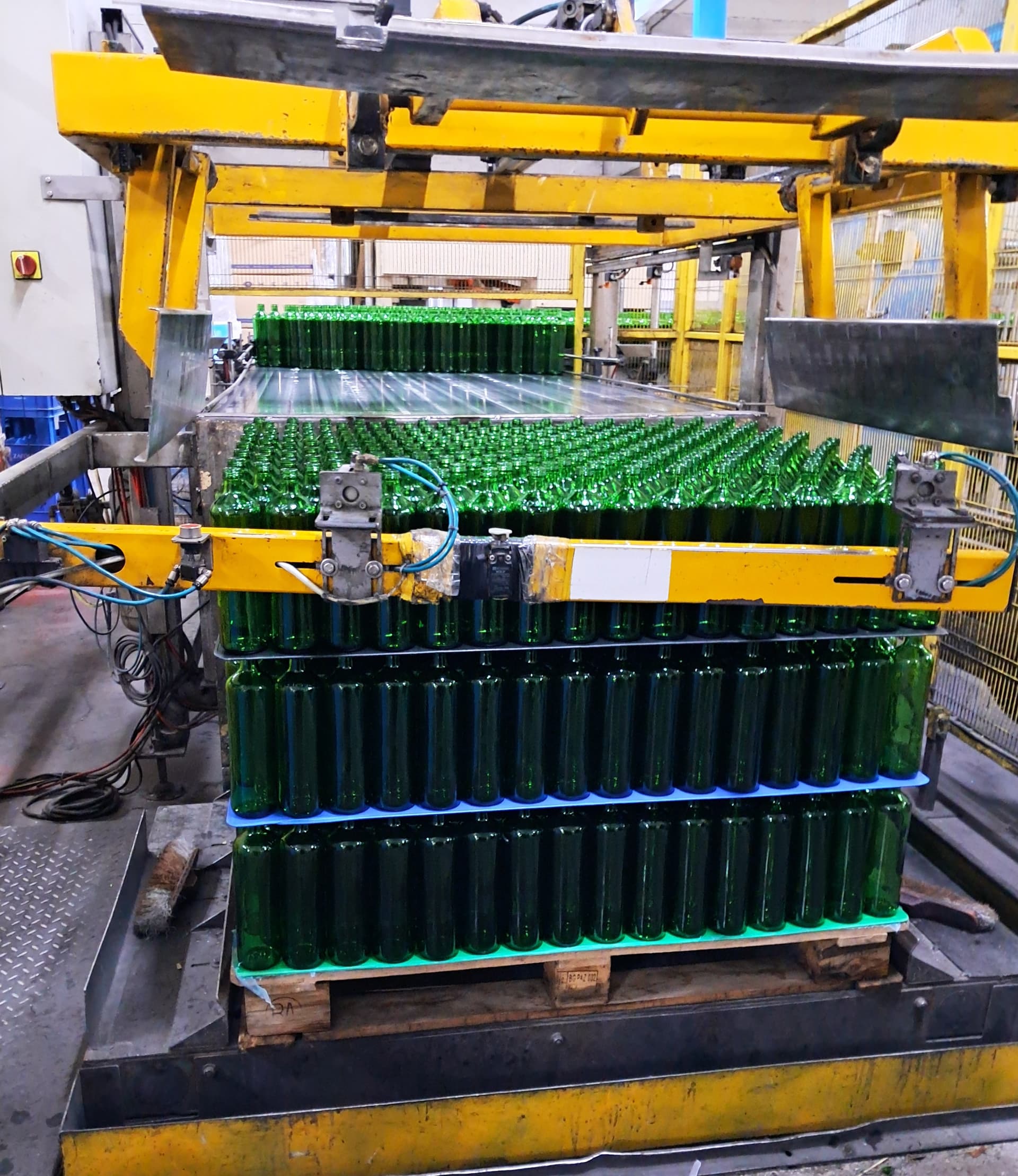

• Depalletizer | DUETTI | M Automatic | 2022 | —

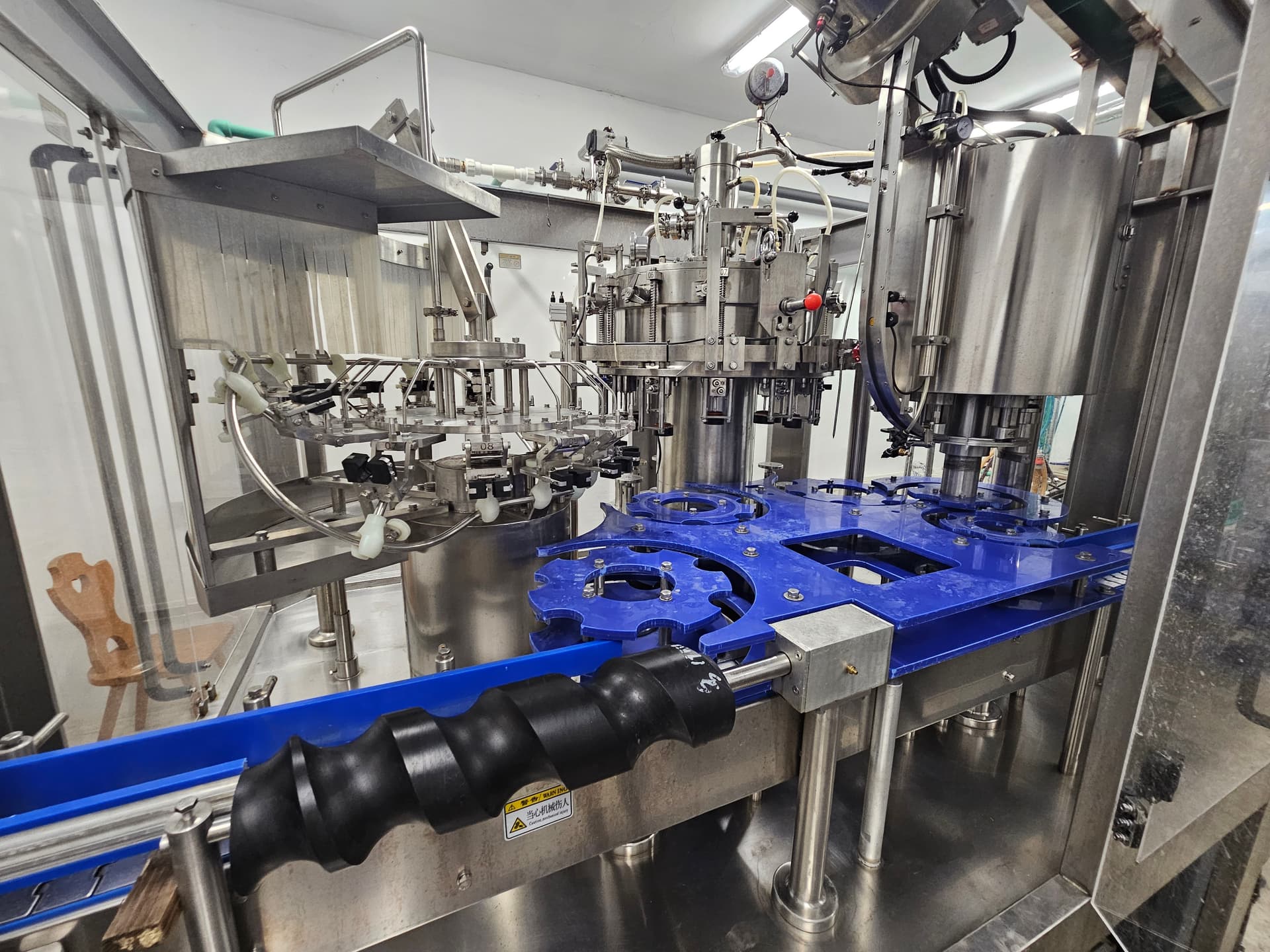

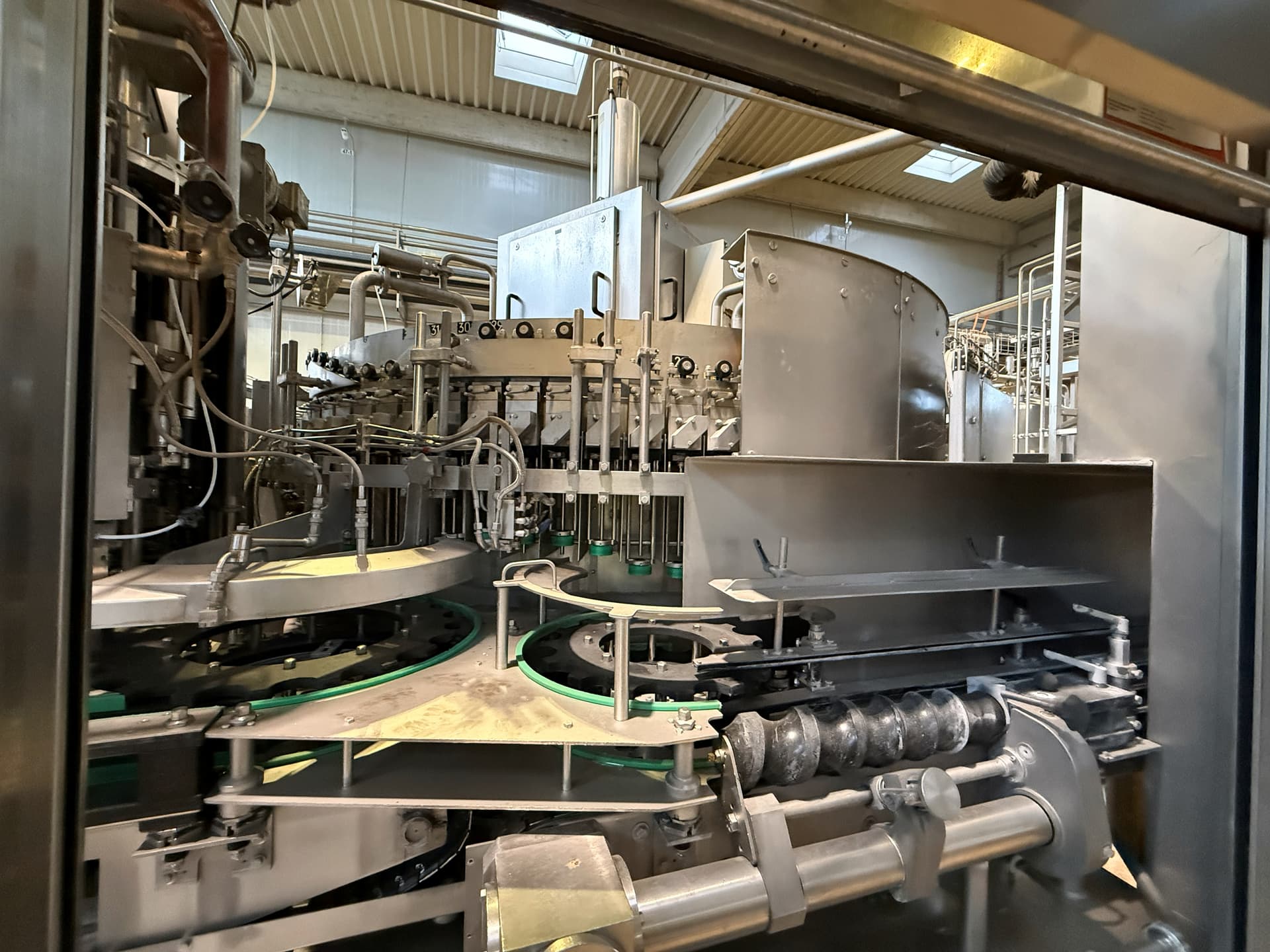

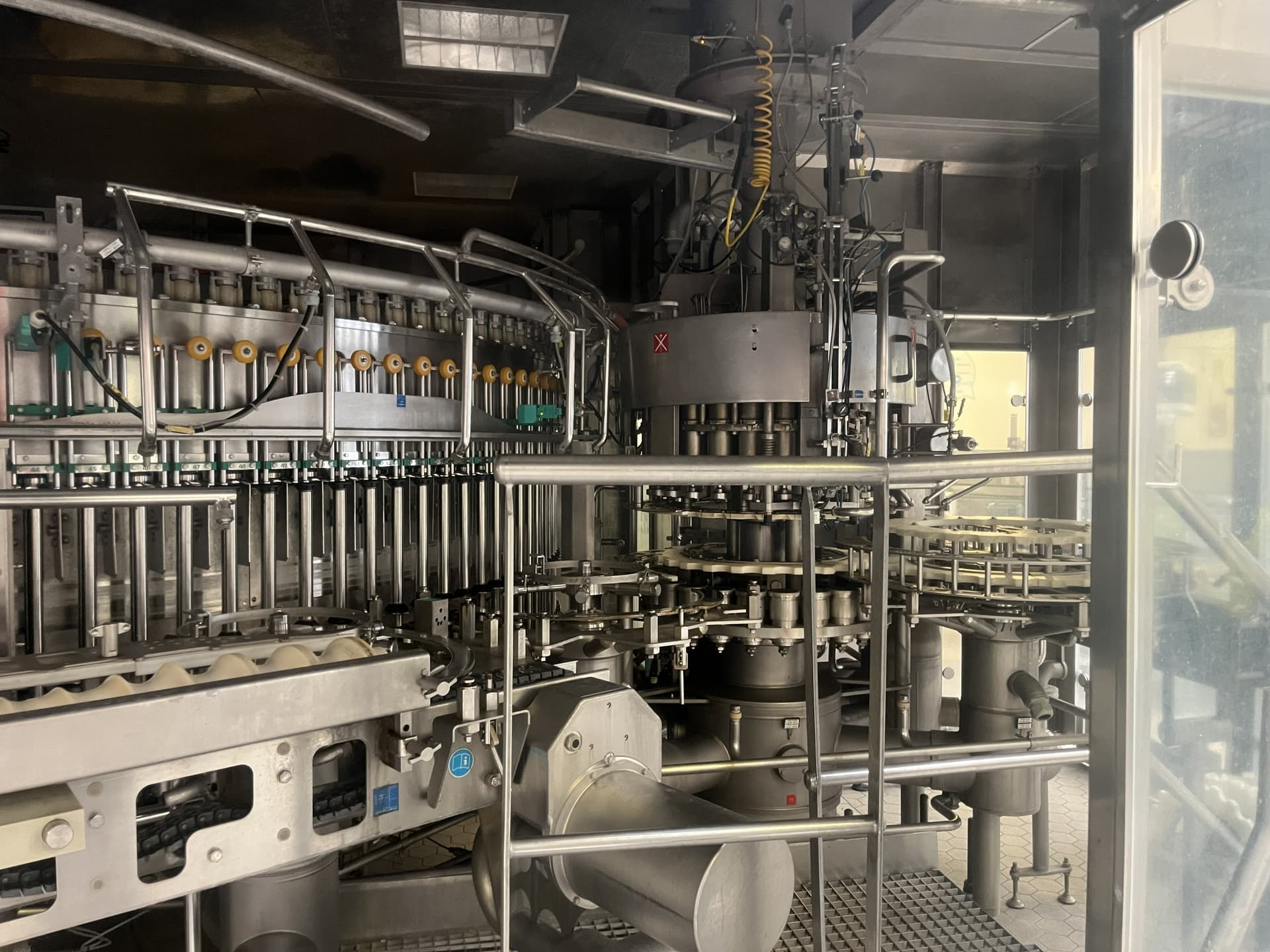

• Rinser–Filler–Capper Monoblock | GAI | 4033 (16 rinser valves / 24 filler valves / 3×3 capping heads) | 2022 | Isobaric
• Automatic CIP System | WIN&TECH | — | 2022 | —
• Microfiltration Pallets (x2) | WIN&TECH | — | 2022 | —
• Wirehooder | ROBINO & GALANDRINO | REKORD 6 | 2022 | —
• Level & Cap Inspector | CMP | — | 2022 | —
• Capsule Distributor & Monoblock | ROBINO & GALANDRINO | ZENITH F 3/18 | 2022 | —
• Adhesive Labeller | MAKRO | 4 Stations | 2022 | —
• Bottle Conveyors | — | — | 2022 | Included
