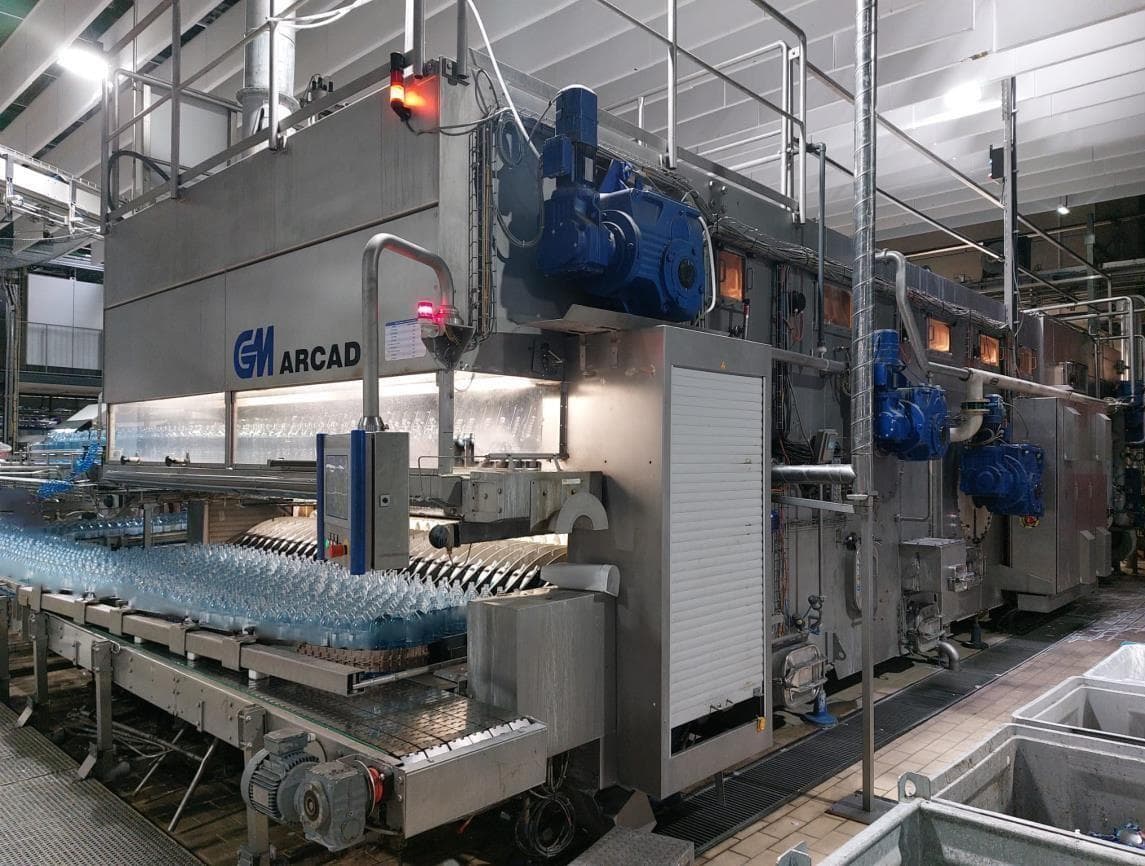

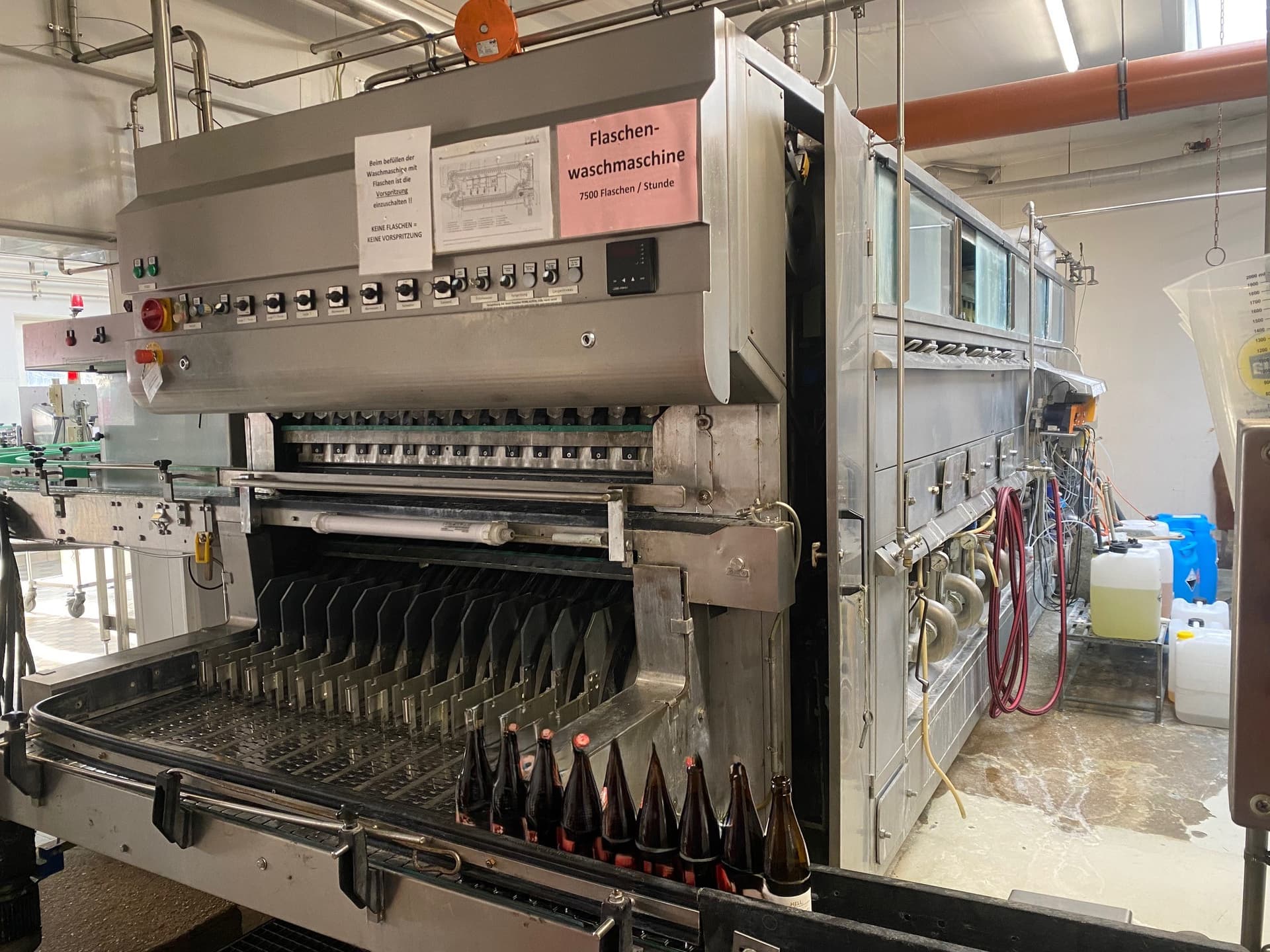

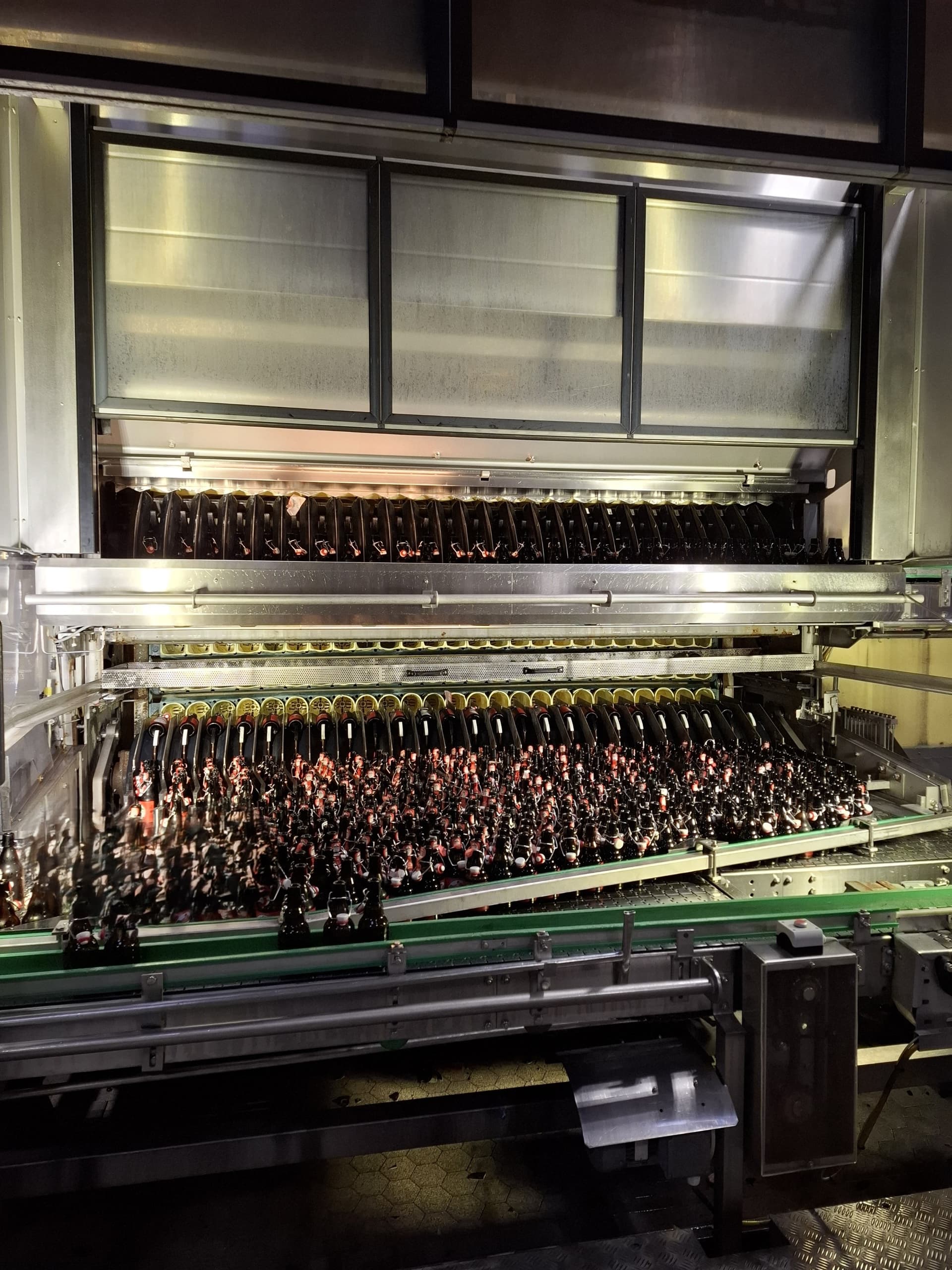

GM Gera ARCADE GEL3 RV1-186 / 95 - 16 Bottle Washer (2005)

Overview

The bottle washer was previously used in a mineral water factory. Due to the good maintenance, the machine is in good condition. All basins and the machine body are made of stainless steel. The machine is still working and will be free in early 2027, when the complete line is replaced.

Tech Specs

• Capacity: 15,500 bph

• Cell Pitch: 95mm

• Bottles per row: 16

• Dimensions + Weights: Housing: 8350 x 1,860 x 2,990 mm / 121,750kg Ready for operation with attachments: 8,700 x 3,560 x 3,330mm / 37,639kg

• YOM 2005

• Formats:

  • 0,5l

  • 0,75l

The Machine in Detail / Equipment Features

• Heated by steam

• Pre Cleaning and removal of residual liquids by pulsed rinsing prior to washing

• CE certified

• Chemical Dosing Pumps

• Machine data sheet included

• Rotating Spray nozzles

• Single End Machine

• Label discharge rear right

• Label press mounted to the machine

• Finger discharge + finger feed

• Bottle cells made of plastic

• Concentration measurement

• NaOH supply liquid

• Sectional view arrangement of baths

• Spindles SST

• Control Siemens S7

• Regularly maintained

• Full machine body in SST

• Vapor Discharge
