Hormes KHS, Krones, 15,000 bph Line for Non-Returnable Glass Bottles (2015)

Overview

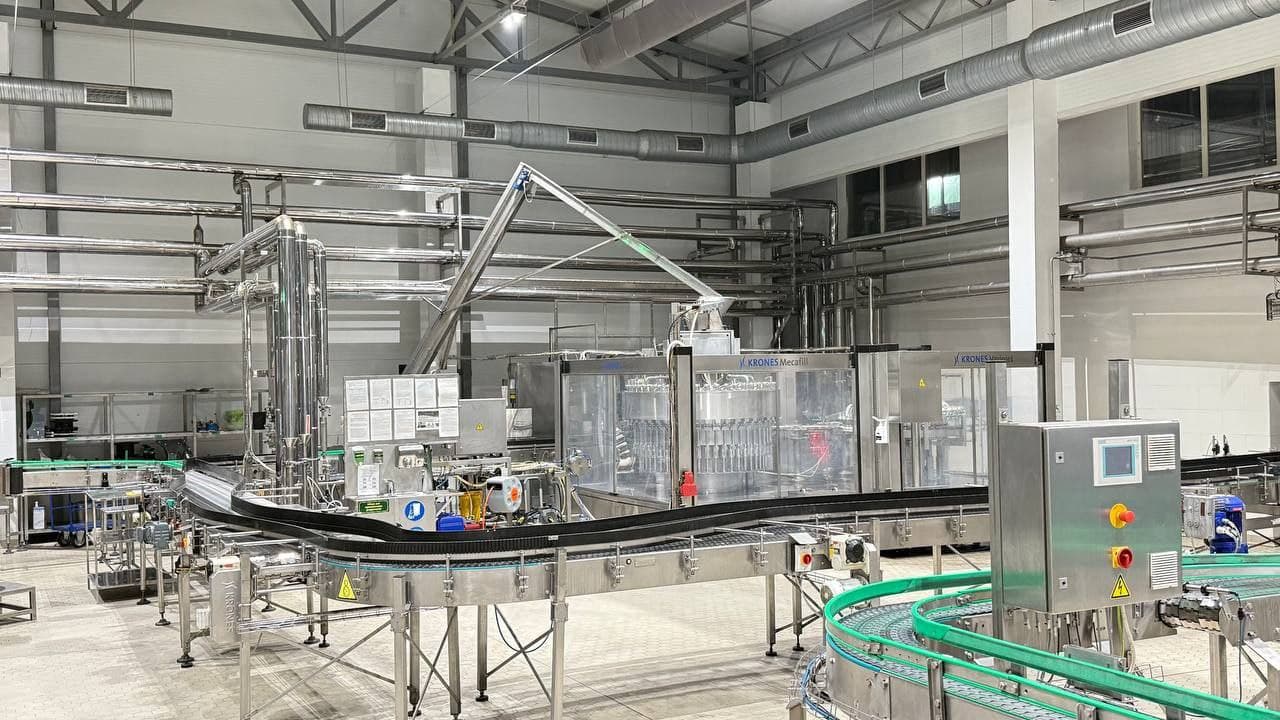

This filling line was part of a whole brewery and was assembled in 2015 by German manufacturer Hormes. The line will be dismantled soon. The bottling line recently ran at 15,000 bph with 0.33L glass bottles.

Components

• Glass Depalletizer | Hormes
  • Set up for 1 pallet size, new glass pallet: 1000 mm x 1200 mm
  • The chain hoist is driven by an electric motor.
  • The traverse has a length of approx. 4,500 mm
• Fully automatic rinser | Hormes
  • Capacity: up to 15,000 bph
  • Number of spray nozzles at least 36
  • Equipped for 1 bottle type
  • The inside of the bottles is sprayed with fresh water
  • Spraying with fresh water approx. 1.5 sec., draining approx. 5 sec.
  • Inlet auger, star wheels and guides are easily replaceable
  • Machine cladding made entirely of stainless steel
  • Electrical connected load: 230/400V, 50Hz, approx. 4 kW.
  • With new S7 control system

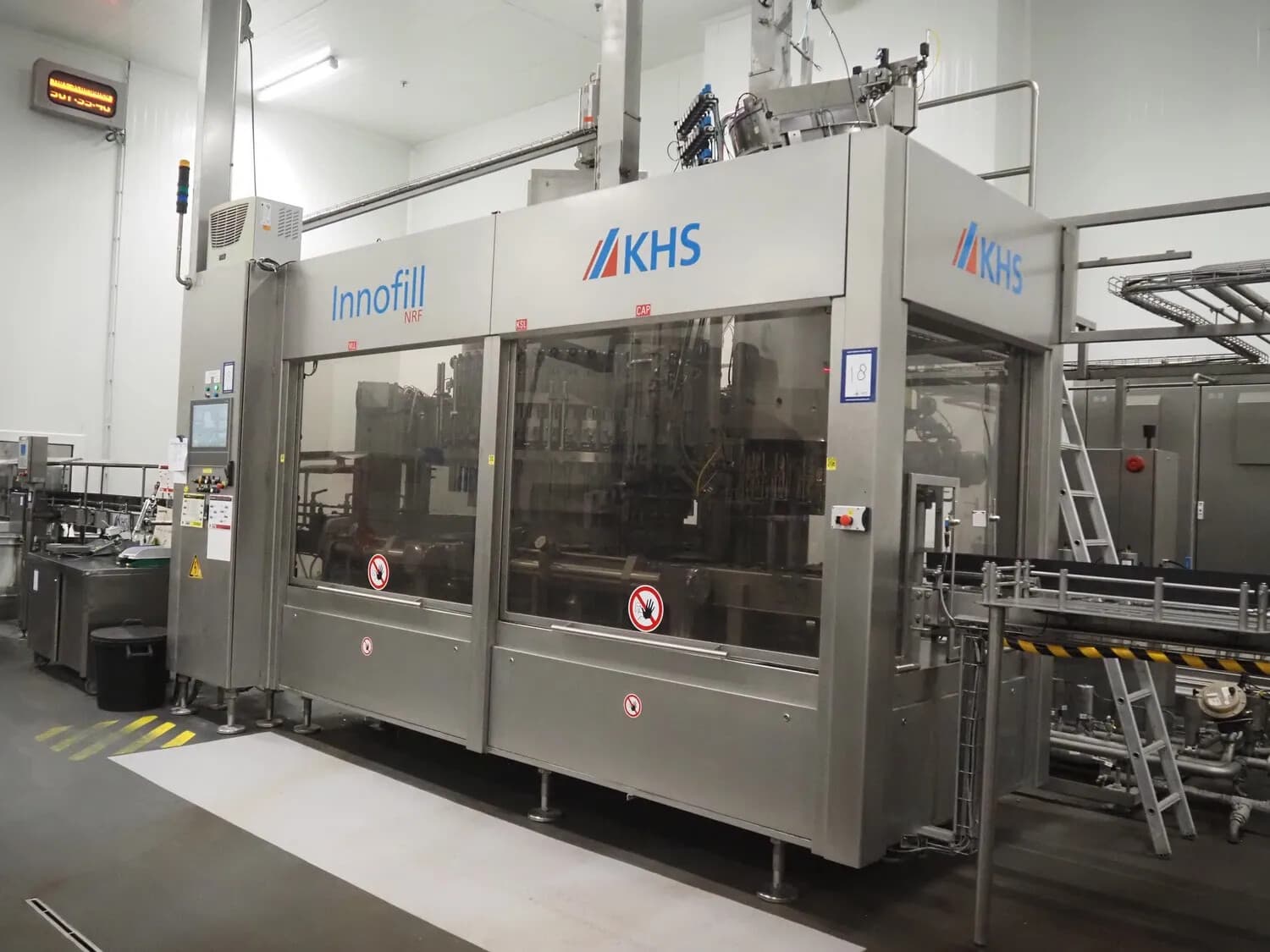

• Automatic bottle filling and capping machine | KHS
  • Number of filling valves: 50
  • Number of capping points: 10 for standard crown corks, 26 mm
  • Filling capacity: up to 15,000 bottles/h
  • All parts in contact with the product are made of stainless steel
  • Electrical connection: 230/400V, 50Hz, control voltage 24V DC
• Pneumatic cap loading system | Hormes
• Fully automatic labeling machine | Krones
  • Output: up to 16,000 bottles/h
  • Prepared for processing the following equipment:
    • Belly, back and breast label, i.e. with 2 units, label length max. 130 mm
  • Modern design standing on height-adjustable feet
  • With automatic bottle stop
  • S7 control, 2 pneumatic glue pumps
• Carton packaging machine | Wrapapack
  • For packaging bottles in full cartons or trays
  • With magazine compartment for inserting the carton blanks.
  • With hot melt unit
  • Frequency-controlled main drive
  • Electrical equipment S7 control
