Overview

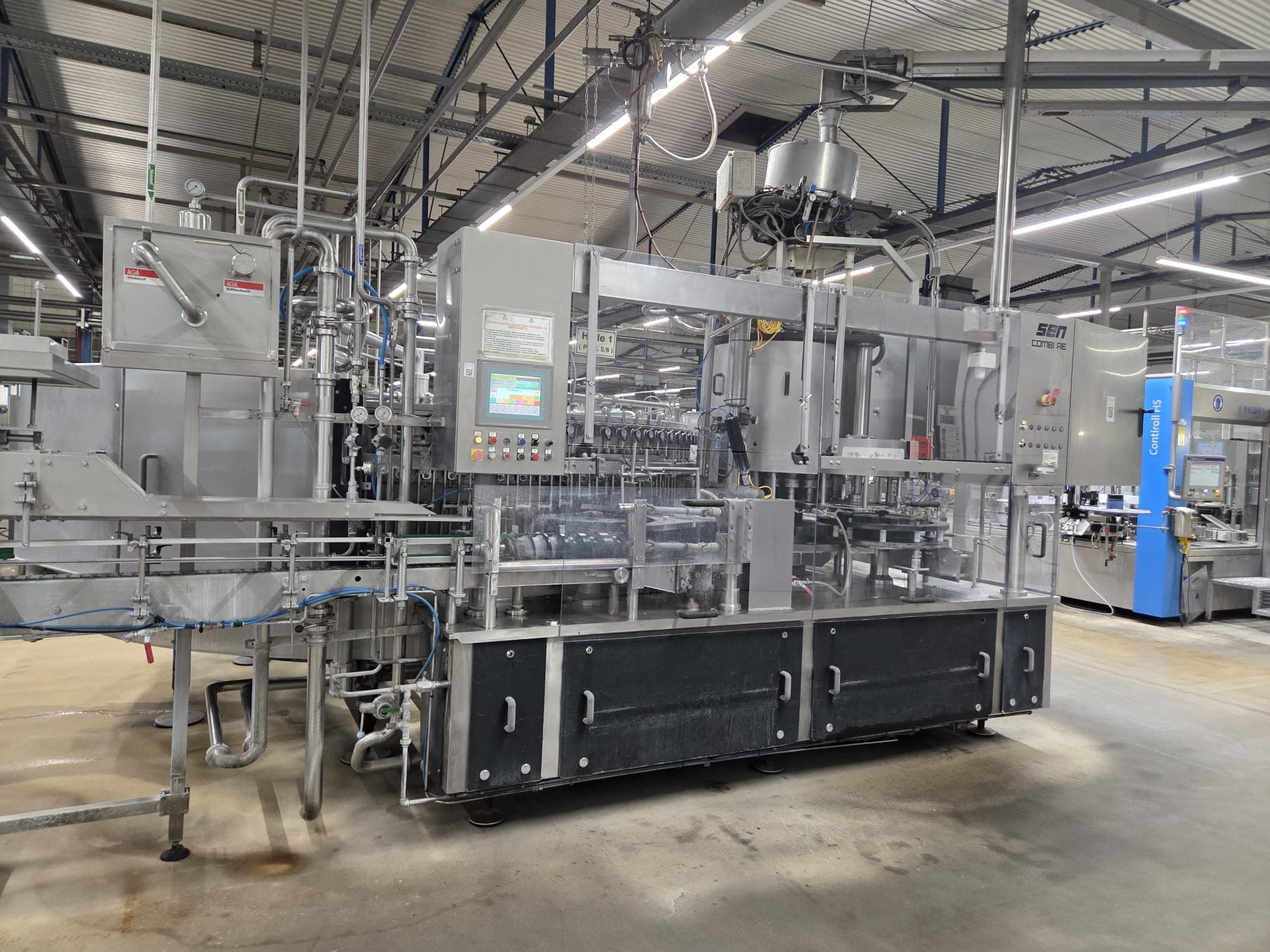

This low-pressure vacuum filler was manufactured in 2004 by MBF. The machine was in use until 2017 and was fully functional at the time of shutdown. It was replaced due to the increased demand for carbonated products, which required a different filling principle (counter-pressure). Since then, the machine has been stored dry and protected, with only minor dust present. It is promptly available for sale.

Technical data

• Capacity:
  • 6,000 bph (1.0 l bottles)
  • 7,000 bph (0.75 l bottles)
• Bottle diameter: 55–120 mm (via steplessly adjustable in/outfeed stars)
• Bottle height: 150–370 mm
• Number of filling valves: 36
• Filling principle: Low-pressure vacuum filling
• Running direction: Left to right
• Filling valve type: Electropneumatic
• Special features:
  • Programmable bottle parameters with automatic adjustment for bottle height and fill level
  • Hot filling capable with auto shutdown at temperature deviation
  • Automatic speed adjustment based on bottle infeed
  • CO₂ pre-flushing of bottles
  • Inert gas overlay possible in the filler bowl
  • Auto fill level control depending on product temperature
  • Auto wine changeover via CIP tray
  • CIP dummy bottles and semi-automatic cleaning program
  • Remote maintenance modem
  • Complete documentation (spare parts list, wiring diagram)
  • Central electric fill level adjustment

Scope of Delivery

• MBF Fillmatic 36LV Filler
• CIP dummy bottles
• CIP tray
• Tele-Modem
• Complete documentation (electrical and spare parts)
