Slowbeer 250 Complete Microbrewery Brewhouse (2016)

Overview

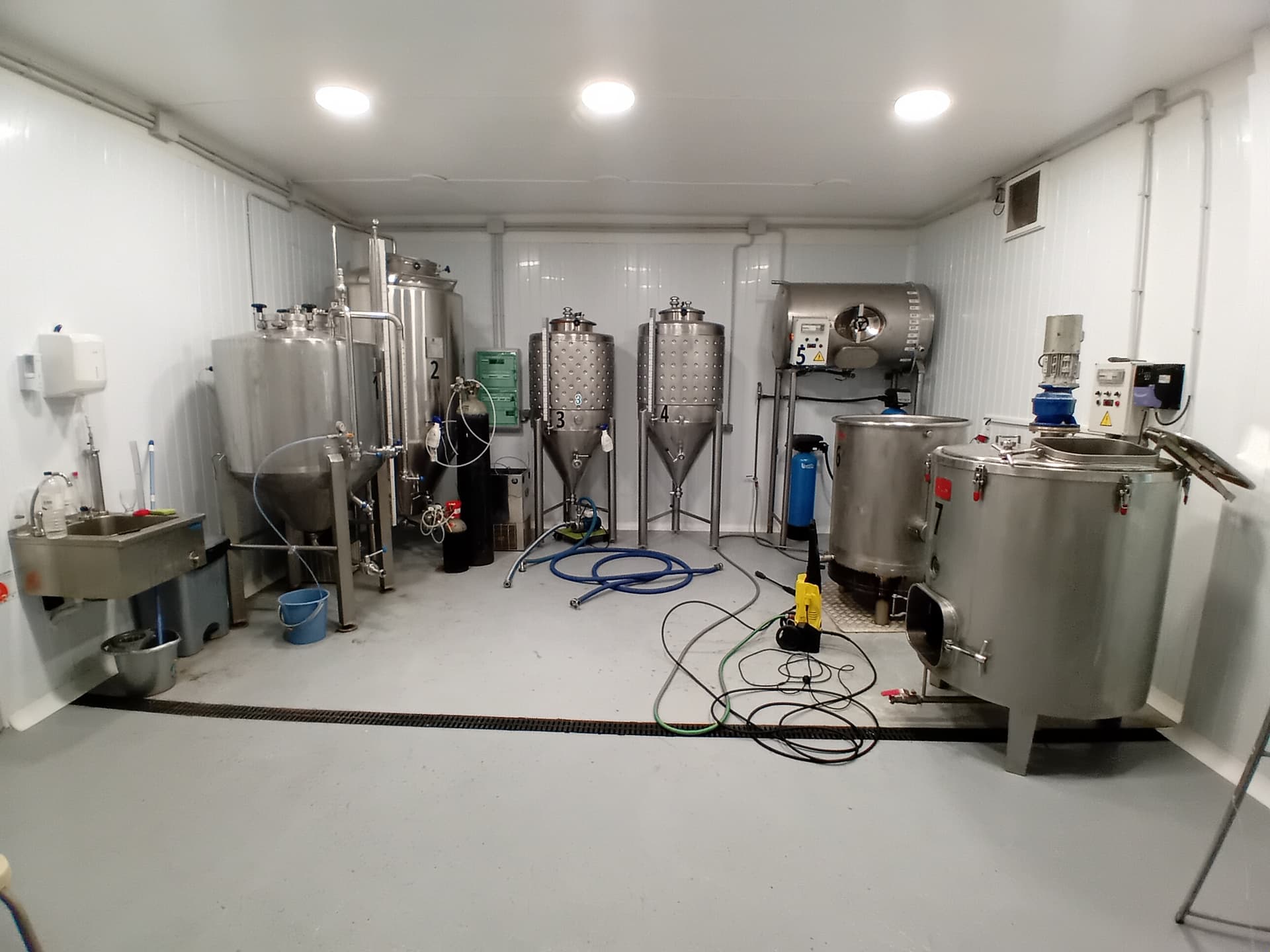

Complete craft microbrewery around a 250-litre batch brewhouse - the Slowbeer 250, built in 2016 by Škrlj d.o.o. (Slovenia). The package covers the whole process from malt crushing to bottling - brewhouse, two 1,000 L fermenters, hot water tank, glycol chiller, 4-spout bottling unit and malt mill. All main units date from 2016 - a turnkey set for a brewpub or a start-up brewery.

Technical data

• Brand: Slowbeer - main units built by Škrlj d.o.o., Slovenia
• Model: Slowbeer 250 - Škrlj COMPACT BREWHOUSE MINI 250 L (type BHM 250, 2.5 hl)
• Year of manufacture: 2016
• Batch capacity: 250 L
• Heating: thermal-oil jackets, electrically heated - 400 V, 50 Hz
• Material: stainless steel AISI 304 (EN 1.4301), vessel and jackets
• Fermentation capacity: 2 x 1,000 L (nominal)

Scope of Delivery

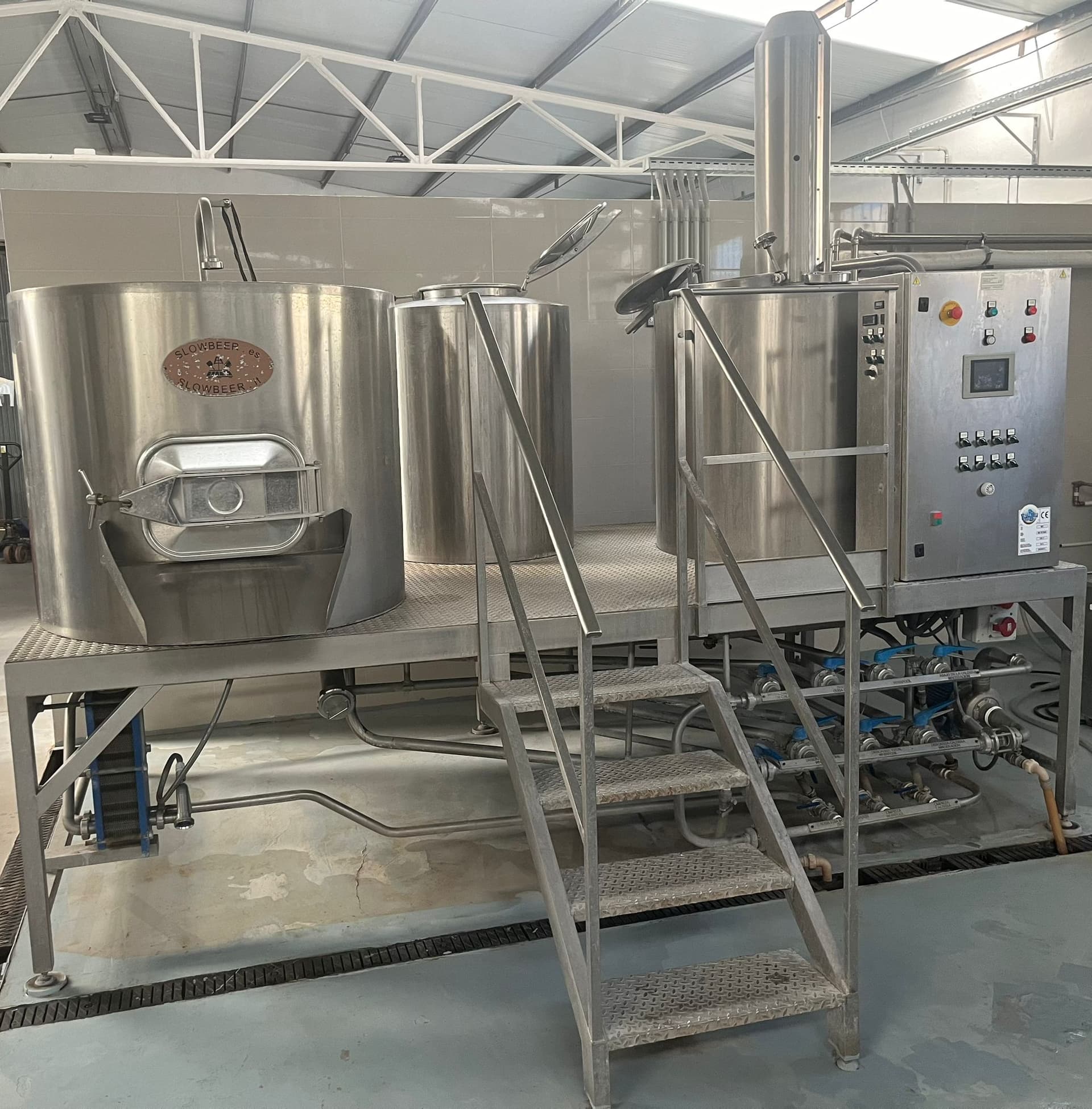

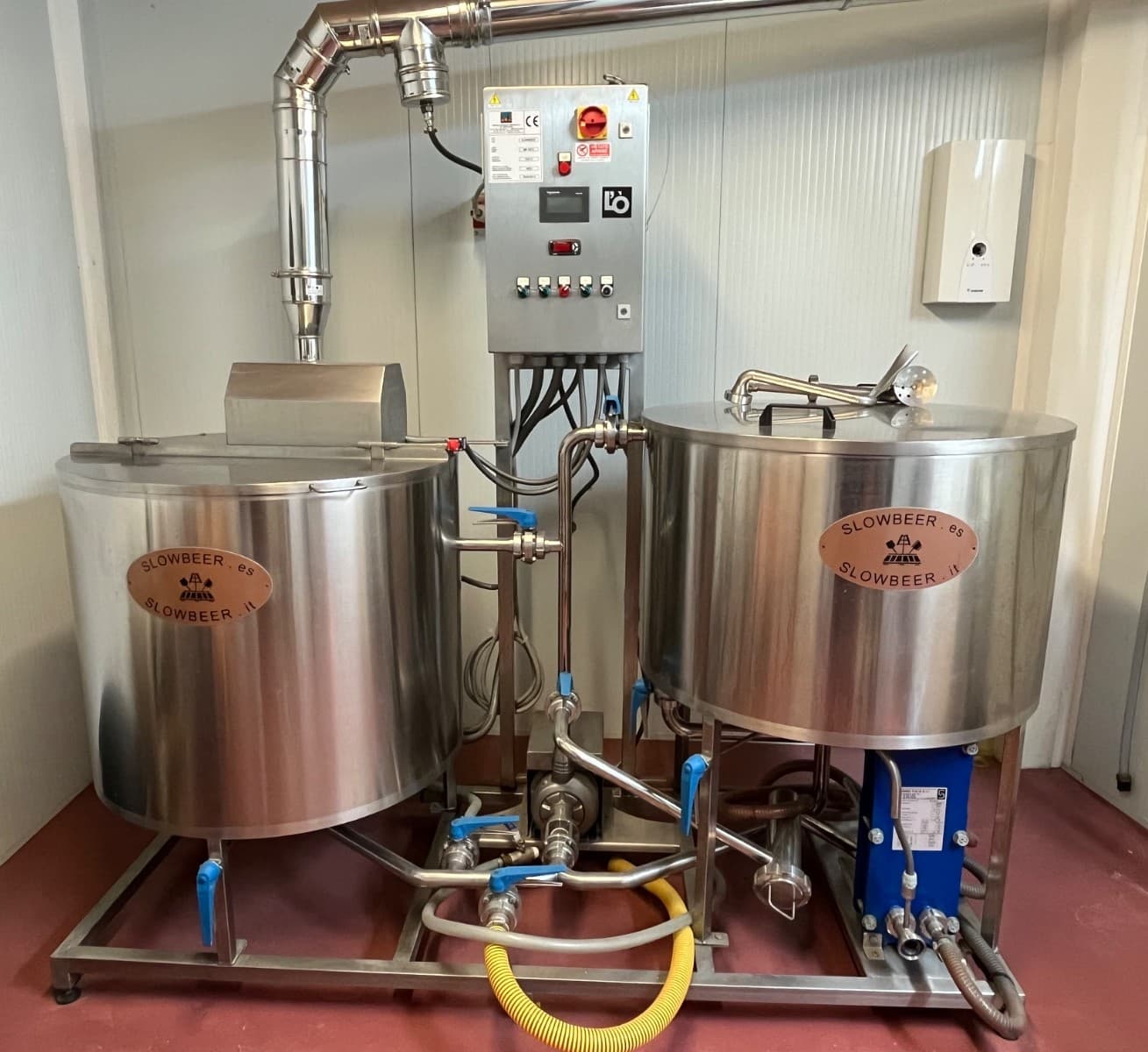

• Compact brewhouse | Škrlj (Slowbeer 250) | COMPACT BREWHOUSE MINI 250 L | 250 L per batch, thermal-oil heated, agitator with Bonfiglioli gear motor, Lowara CO350/03K/A wort pump (2019), Pedrollo NGA 1B thermal-oil pump, IPROS TP4001/15 plate heat exchanger, control cabinet with Omron frequency inverters | 2016
• Beer fermenters, 2 units | Škrlj | ZKG 1000 L | nominal 1,000 L each (1,230 L gross volume per vessel), AISI 304, atmospheric vessel 0-50 °C, water/glycol cooling jackets on shell and cone (3.0 bar operating, 6.0 bar test), sample valve, level indicator, CIP spray ball; recirculation pump with cleaning hoses plus one unused spare pump | 2016
• Hot water tank | Škrlj | 1200 L | AISI 304, electric heating 24.4 kW, 0-90 °C, CE 0531 | 2016
• Glycol chiller | MTA | TAEevo TECH 020 | 400 V / 3-ph / 50 Hz, 3.9 kW electrical input, refrigerant R410A, water circuit max. 6 bar, hose circuit for the fermenter jackets, digital temperature control | 2016
• Gravity bottling unit | Mori-Tem | MODERNA B.4 A LE | 4 stainless steel filling spouts, Ebara JESX M5 feed pump, 230 V single-phase 50 Hz | 2016
• Malt roller mill | Egon Sommer Maschinenbau | PICCOLO 11 SB | 1.1 kW three-phase motor (230/400 V) | 2016

Transport dimensions (palletised, approx.)

• Brewhouse: 2,400 x 1,200 x 2,200 mm, 660 kg
• Fermenters (each): 2,700 x 1,100 x 1,245 mm, 240 kg
• Hot water tank: 1,210 x 1,210 x 2,245 mm
• Glycol chiller: 1,300 x 600 x 955 mm, 220 kg
• Bottling unit: 1,000 x 700 x 1,650 mm, 180 kg
• Malt mill: 800 x 600 x 1,200 mm, 90 kg

Condition

Used - very good to excellent overall condition. Brewhouse, fermenters and malt mill in excellent condition; chiller and bottling unit in good working order. The hot water tank is fully functional, with a light cosmetic dent on the top cover and normal limescale deposits inside. CE declarations and technical documentation are available for every unit except the malt mill, where the documentation is still being confirmed.

Availability

Immediately. Location: Spain. Dismantling and loading by arrangement.
