Overview

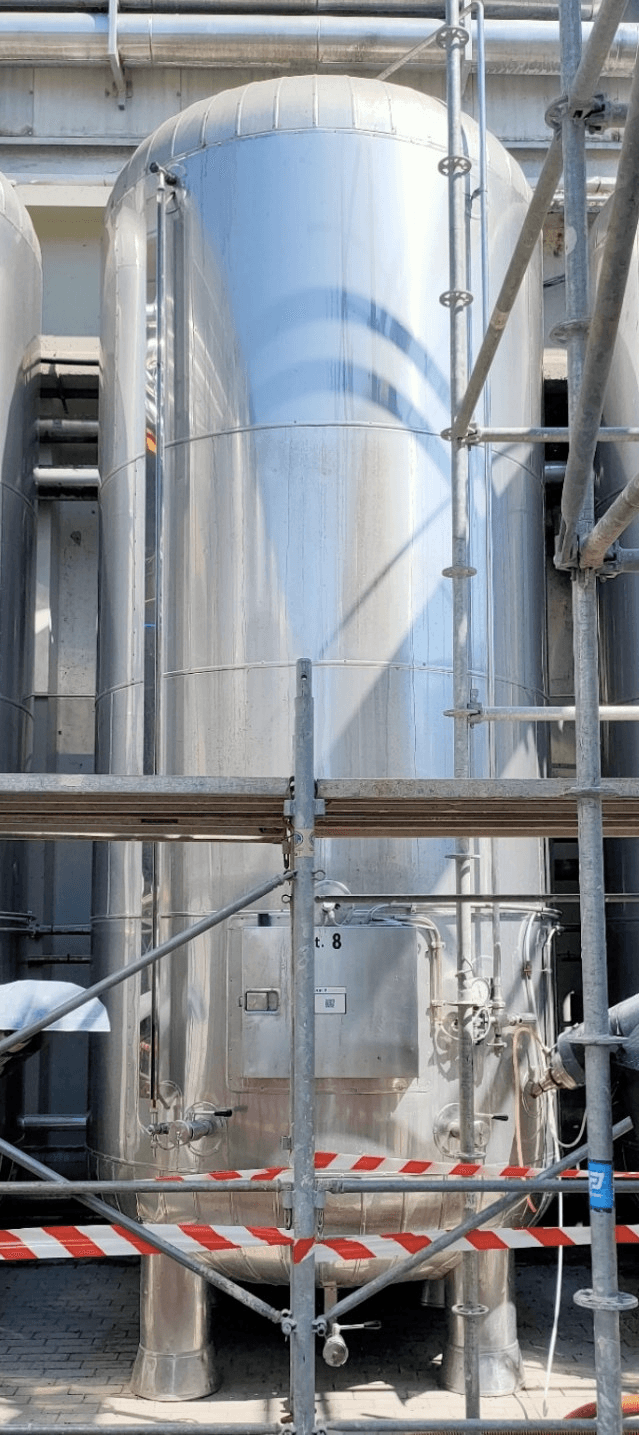

These 4 isobaric pressure tanks (200 hl each) manufactured by TMCI Padovan in 1992 originate from the wine industry and were previously used for sparkling wine production. With their full cooling jacket design and pressure rating of up to 6 bar, the tanks are suitable for fermentation, maturation, and storage of carbonated beverages, including beer, sparkling wine, and related products. The tanks are constructed from carbon steel with an internal food-grade epoxy coating, a technology widely used before stainless steel became the industry standard. They represent a cost-effective alternative to stainless steel tanks, particularly for producers seeking lower capital investment. Each tank is fully insulated and equipped with a complete cooling jacket, enabling controlled temperature processes. Due to the coating system, regular inspection and renewal of the epoxy lining is required, depending on usage and product type.

Technical Data

• Manufacturer: TMCI Padovan

• Year of Manufacture: 1992

• Quantity: 4 units

• Type: Isobaric pressure tank with full cooling jacket

• Application: Fermentation, maturation, storage of carbonated beverages

• Capacity: 200 hl per tank

• Material: Base: Carbon steel Internal coating: Food-grade epoxy resin Insulation: Approx. 100 mm polyurethane with stainless steel cladding

• Pressure Rating: 6 bar

• Dimensions (per tank): Outer Diameter: approx. 2,200 mm Cylinder Height: approx. 7,000 mm Total Height: approx. 9,000 mm
