Overview

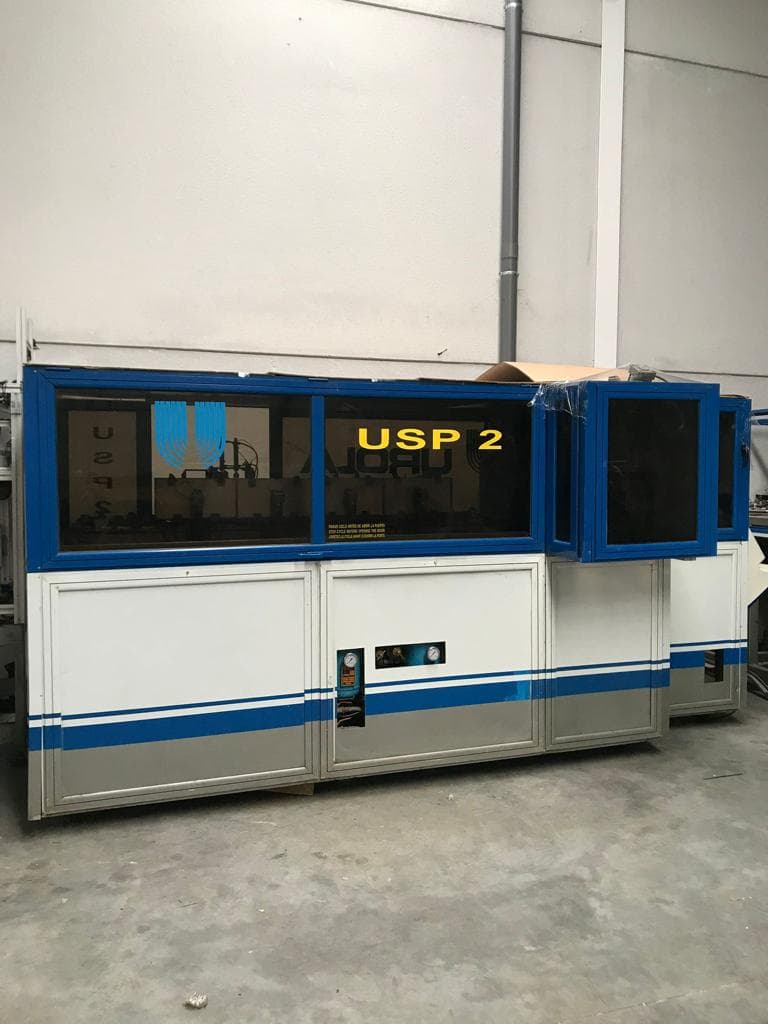

This stretch blow molding machine was manufactured in 2014 by Urola. The machine is designed for the production of PET containers with a 2-cavity mold configuration.

Technical data

• Capacity: Maximum 3,200 bph
• Formats: Maximum container dimensions 120 mm diameter × 350 mm height
• Application: Production of PET containers
• Configuration: 2 cavities

Installed Power

• Preform rotation motor: 0.18 kW
• Clamping press motor: 7.5 kW
• Stretching motor: 3.0 kW
• Transfer arm motor: 1.3 kW
• Preform heating oven: 32.0 kW
• Preform feeder: 0.36 kW
• 24 VDC power supply (10 A): 1.0 kW
• Air reflector fan: 0.75 kW
• Neck cooling fan: 0.75 kW
• Lubrication pump: 0.07 kW
• Container evacuation: 0.09 kW
• Intermittent chain rotation: 0.18 kW

Cooling Circuit

• Water inlet temperature: 10–20 °C
• Water consumption: 2 m³/h
• Operating pressure: 4 kg/cm²
• Cooling capacity: 10,000 kcal/h

Pneumatic System – Low Pressure

• Operating pressure: 7 kg/cm²
• Air consumption: 800 l/min

Pneumatic System – High Pressure

• Operating pressure: 38 kg/cm²
• Air consumption: 5,000 l/min
