Overview

The brewhouse, including fermentation and storage tanks and a KEG washer, was built in 2013 by the Austrian manufacturer Flecks. The whole equipment is in a very good condition and can be visited.

Equipment

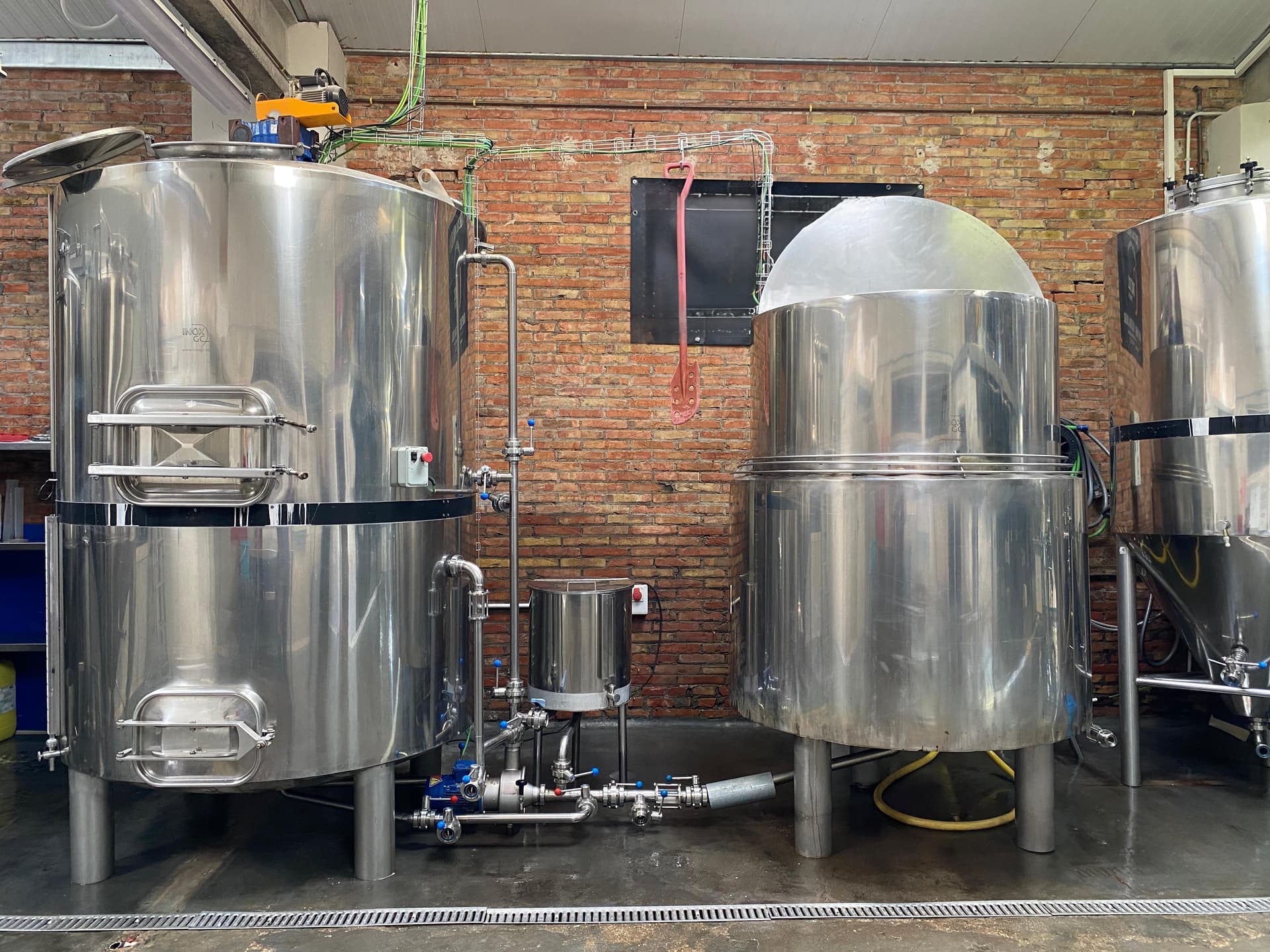

• Mash and brew kettle incl. whirlpool function, agitator, stainless: 1.000 L net
• Lauter tun, stainless: 1000 L net
• Calandria system (outdoor cooker), electrical heating, stainless. Integration of existing gas, heating + electrical: 72 kW
• Vapour-condensation system
• Whirlpool- system
• Mash and wort pump: 2,2 kW
• Hot water tank with electrical heating, stainless: 1000 L, 9 kW
• Wortcooler GEA 2-stages
• pT 100, electron. Thermometers
• Incl. all pipes, fittings, valves in stainless.
• Full automation upgrade:
  • electrical switch board for full automatic process control switches, fuses: 100 kW
  • Main connection 400 V
  • Emergency switch
  • PC-databus and modem
  • Visualisations and automation software "BRAU-MANAGER"
• 2x cooling units
• 2x cooling water pumps
• 1x 2,000L fermentation tank: 2 outlets, cooling jacket, insulation, stainless cladding (for main fermentation)
• 4x 2,000L pressure tanks horizontal: 3 bar, incl. cooling jacket, insulation stainless cladding for secondary fermentation and ripening + as serving tanks)

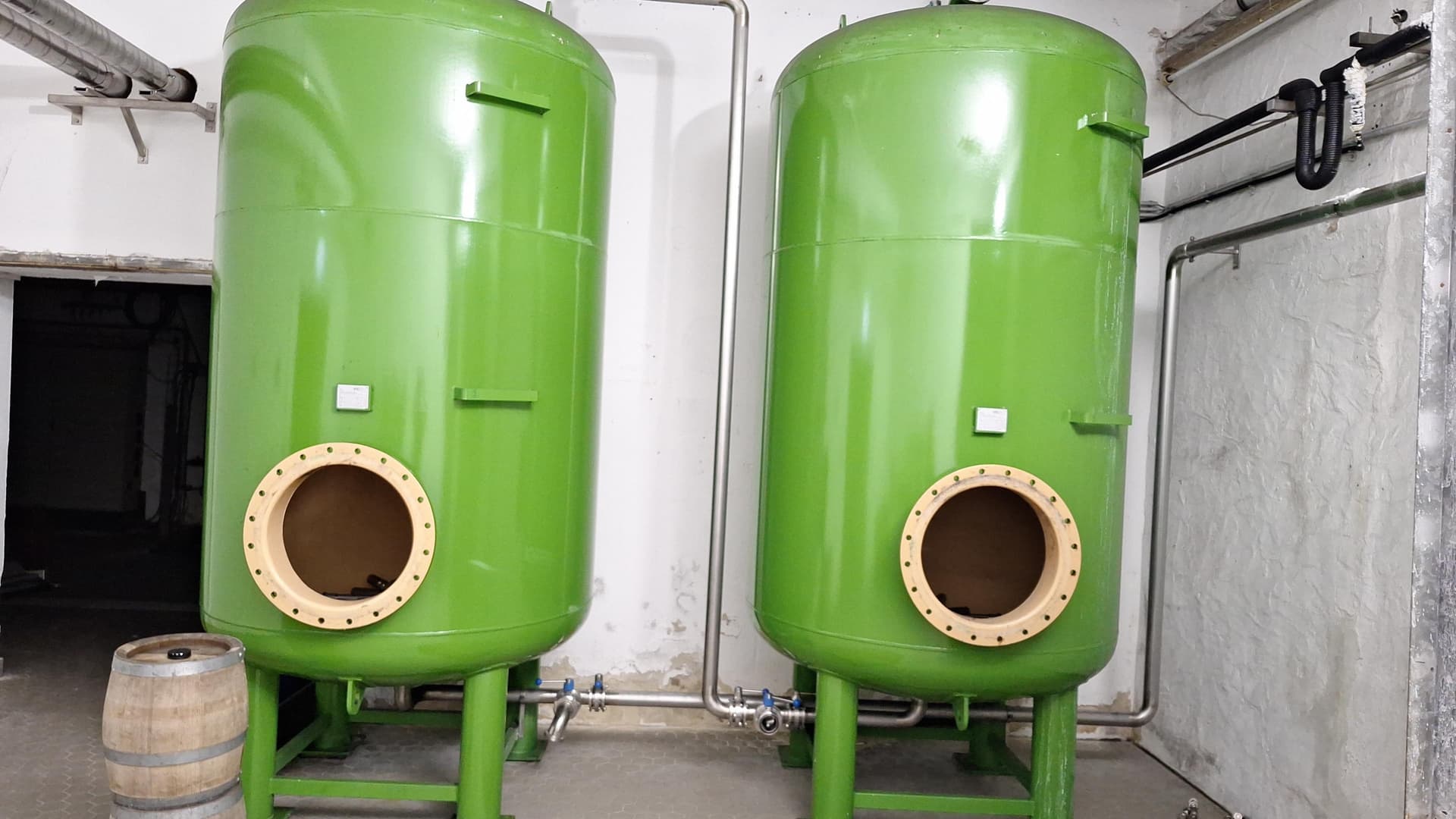

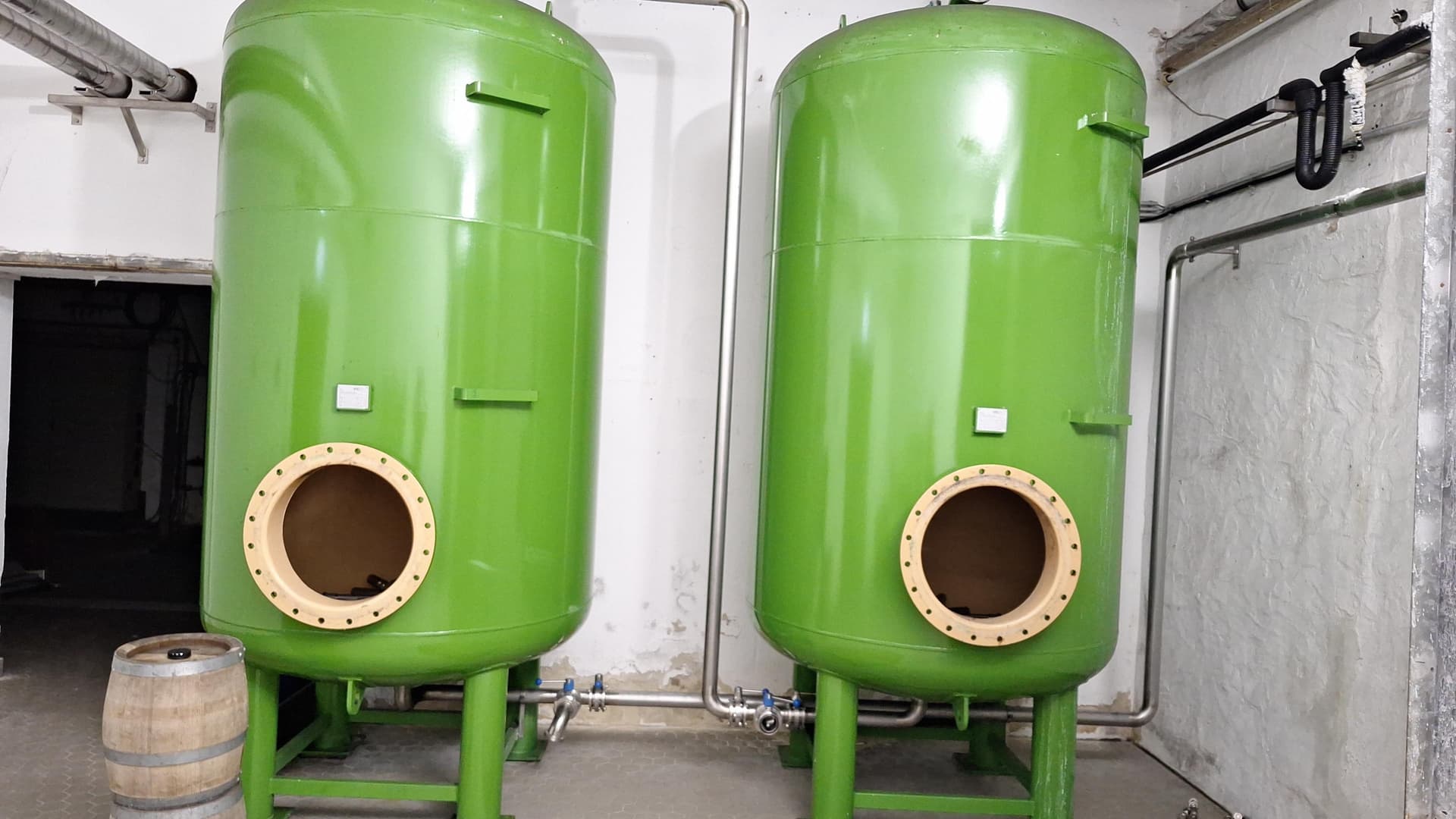

• 4x 2,000L pressure tanks vertical: 3 bar, incl. cooling jacket, insulation stainless cladding (for fermentation and ripening + as serving tanks)
• 1x CIP-cleaning agent tank
• 1x beer- and CIP pump: 0,75 kW
• 3x beer hoses, food quality
• 1x malt mill, 2 rollers with motor: 1,5 kW
• 1x KEG cleaning equipment (10 pcs/hour)
• 1x Main compressor
