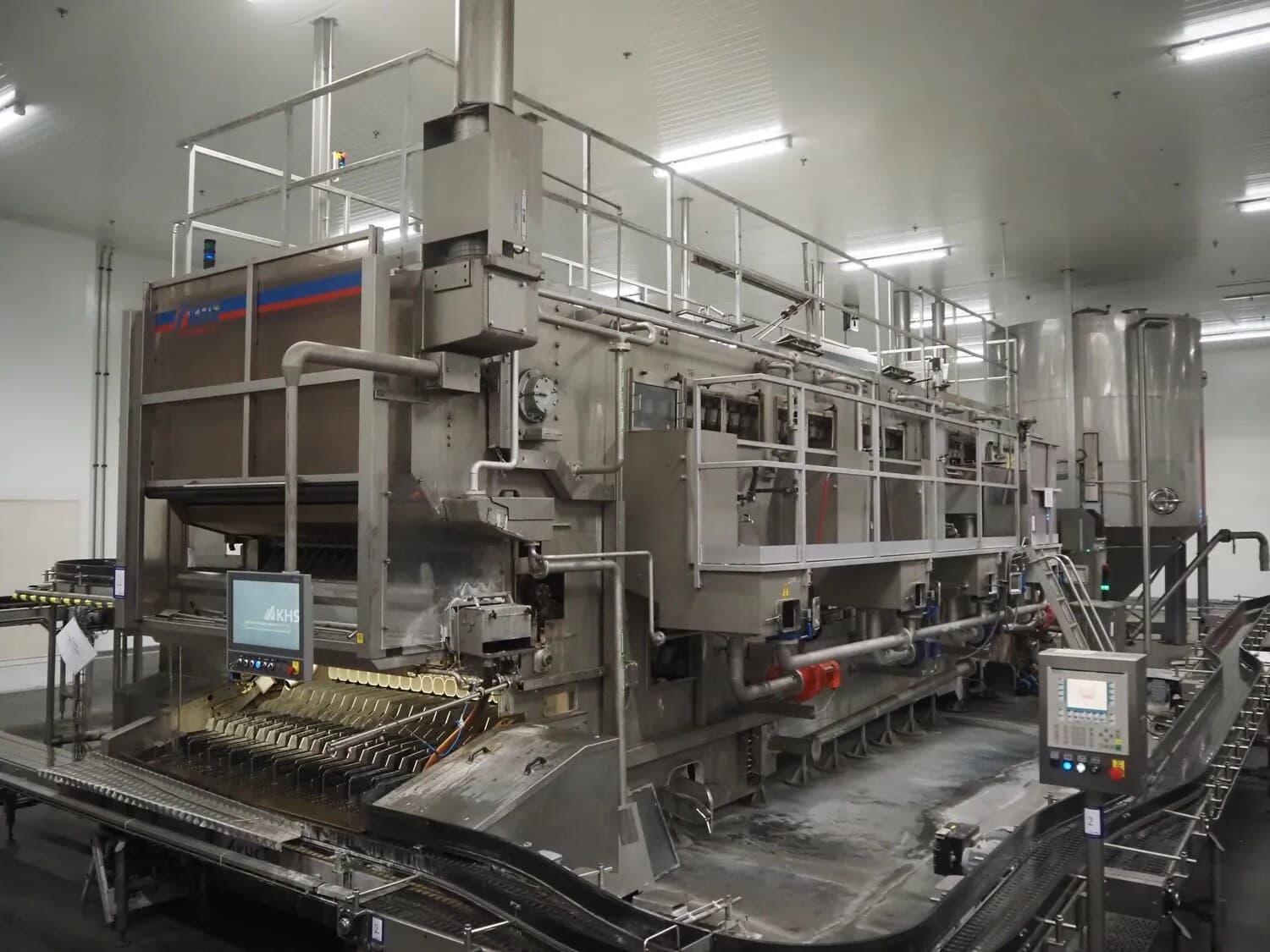

Krones KES 2-4-312/25-110 Bottle Washer (2004)

OVERVIEW

This Krones KES-2-4-312/25-110 bottle washing machine is designed for the industrial washing of returnable glass bottles in beverage production lines. The machine is equipped with 25 bottles per row and has a rated capacity of up to approx. 28,000 bottles per hour.

The machine can process bottle formats from 300 ml up to 1,000 ml, making it suitable for breweries, mineral water producers, soft drink producers and other returnable bottle operations. The washing machine is mainly built in stainless steel, with an insulated stainless steel caustic bath and steam heating system.

The machine will be delivered completely reconditioned. The reconditioning scope includes the bottle infeed and outfeed, heating system, pumps, main chain, valves, piping, spray nozzles, label removal station and electrical panel. A test run is also included.

The machine is offered with Siemens S7 PLC control and is available as a reconditioned machine at a special price.

TECHNICAL DATA

• Manufacturer: Krones
• Type: KES-2-4-312/25-110
• Machine Type: Bottle washing machine
• Year of Manufacture: 2004
• Capacity: approx. 28,000 bottles/hour
• Bottle Rows: 25 bottles per row
• Bottle Formats: approx. 300 ml up to 1,000 ml
• Control System: Siemens S7 PLC
• Heating System: Steam heating
• Construction: Mainly stainless steel, insulated stainless steel caustic bath
• Bottle Cell Pitch: 110 mm
• Machine Cell Material: Polypropylene
• Bottles per Carrier: 25 pcs
• Total Bottle Carriers: 274 pcs
• Minimum Control Range: approx. 12,000 bottles/hour
• Maximum Control Range: approx. 35,000 bottles/hour
• Electrical Supply: 400 / 230 V, 3-phase, 50 Hz
• Control Voltage: 24 V DC
• Empty Weight: approx. 45,000 kg
• Operating Weight: approx. 87,000 kg
• Machine Length: approx. 11,766 mm
• Machine Width without Attachments: approx. 3,136 mm
• Machine Height without Floor Clearance: approx. 3,200 mm
• Water Consumption in Operation: approx. 6.38 m³/h
• Water Consumption per Bottle: approx. 0.22 l
• Main Chain: approx. 4 years old, will be reconditioned
• Reconditioning Scope: Bottle infeed and outfeed, heating system, pumps, main chain, valves, piping, spray nozzles, label removal station and electrical panel
• Test Run incl.
• Delivery Terms: EXW, unpacked
