PAC CB6-0,5-R-5,2BVng Bottle Washer (1996)

Country:

Germany

Year:

1996

Category:

Washing

Manufacturer:

PAC

Model:

CB6-0,5-R-5,2BVng

Availability:

Sold

SKU:

DE-WAS-PAC-1996-00001

Overview

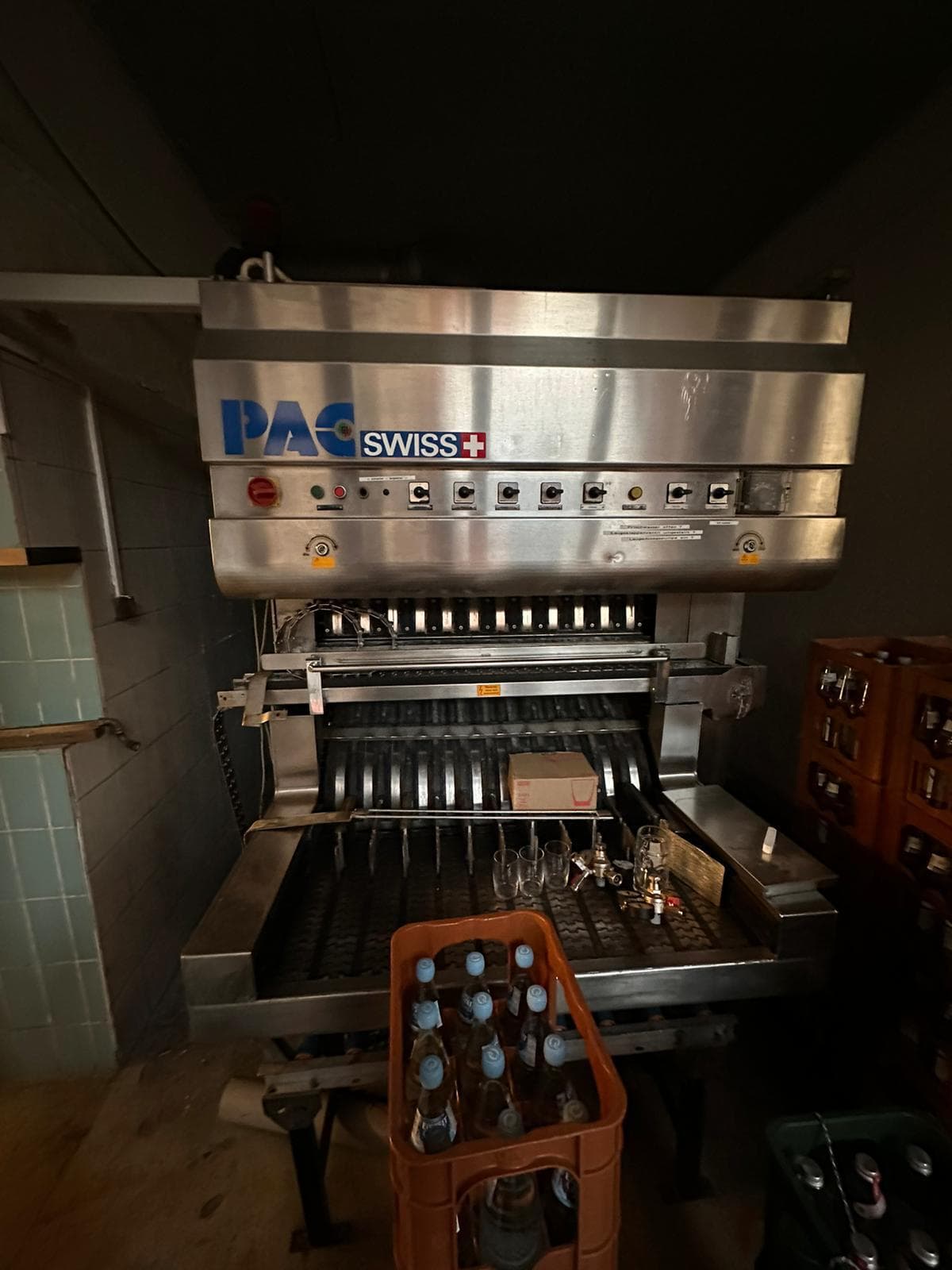

The bottle washer was manufactured in 1996 by the Swiss company PAC. It has residual emptying and pre-spraying and is characterized by low energy consumption. The machine is already disassembled and immediately available.

Technical details

  • Capacity: 3.000 bph
  • Bottle length: up to 262mm
  • Bottle diameter: up to 90mm
  • Bottles per row: 6
  • Bottle cell carrier: 72
  • Water consumption for 0.5l bottle: 0.75m³/ h
  • Heat consumption heating up the caustic (15 - 80 °C): 370 kJx1000
  • Heat consumption in operation, caustic 80°C: 345 kJ/h x1000
  • Power connected load: 6kW
  • Operating weight: 7 t
  • Space requirement:
    • Area: 2,675mm x 5,940mm
    • Height: 2.368mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

If you have any further questions please contact us

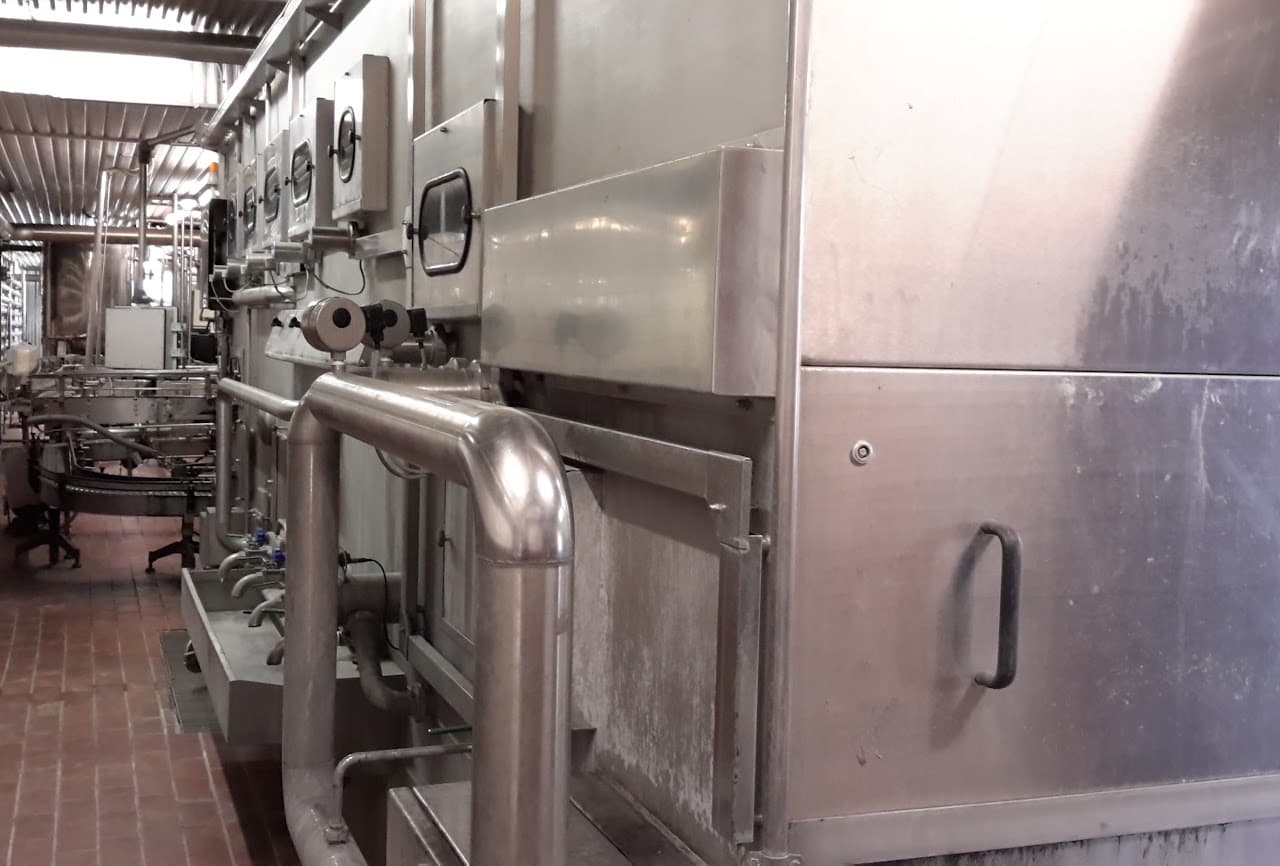

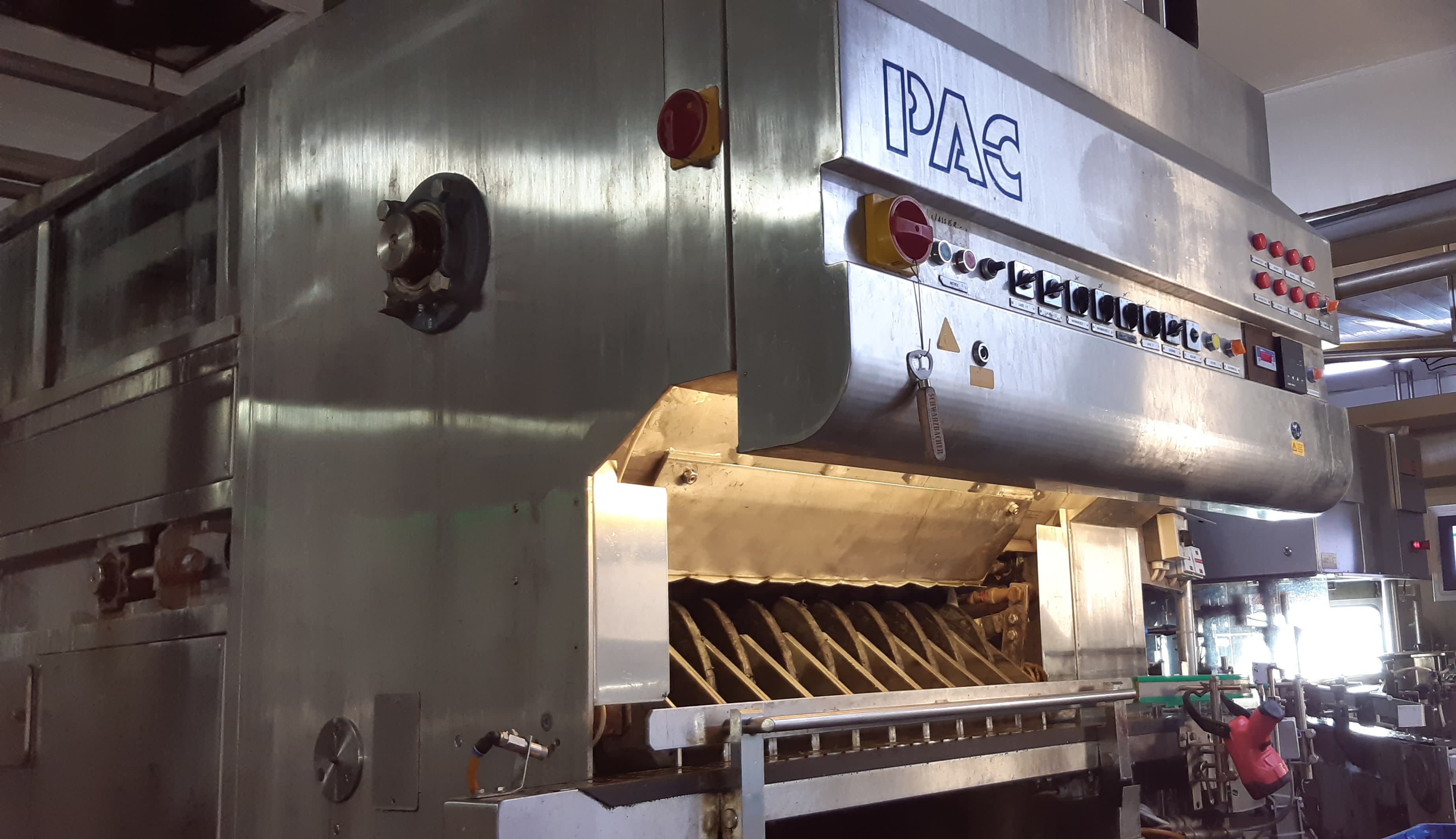

Image of the product
