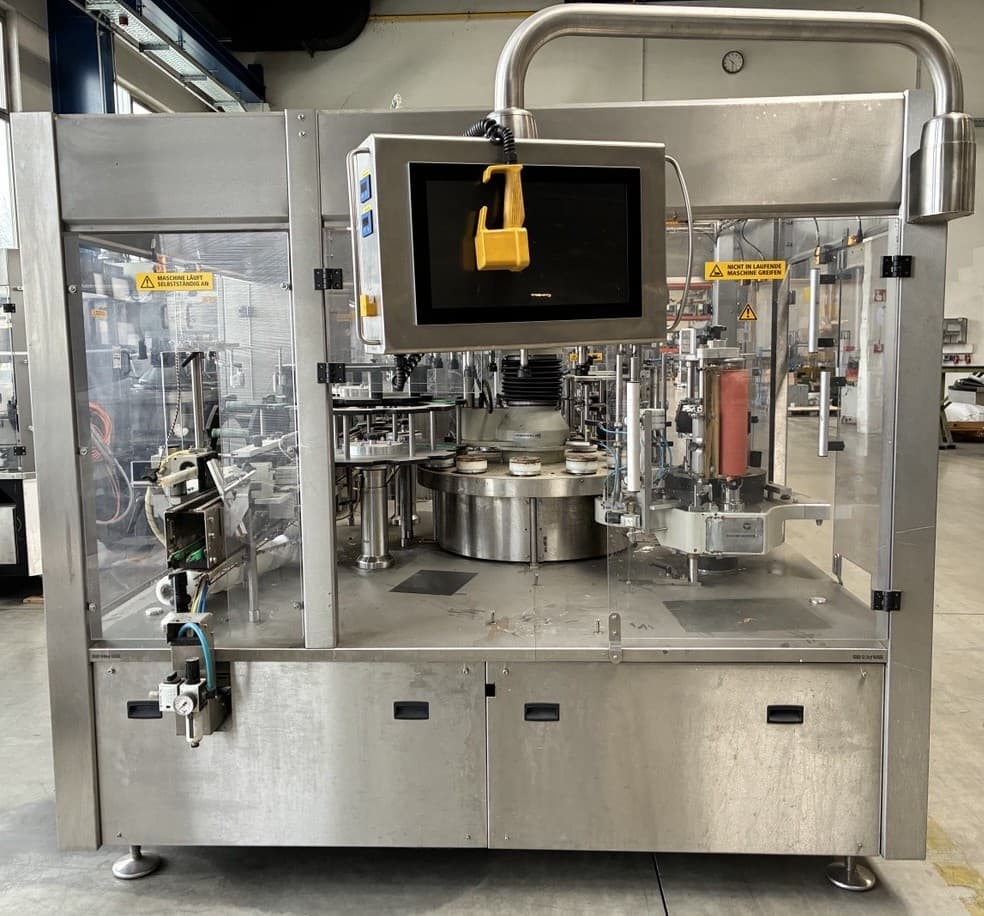

Gernep Labetta 4/3/10 640 2A Cold Glue Labeler (2020)

Overview

This labelling machine was manufactured in 2020 by Gernep. The machine is designed for labelling applications in the juice industry. The machine is currently still installed and under power and can be visited on request.

Technical data

• Capacity: 10,000 bph
• Application: Juice
• Configuration: Gernep Labetta 4/3/10 640 2A
• Labelling technology: Cold glue / Rollina
• Labelling stations: 2 × cold glue aggregates
• Bottle Formats
  • Container type: Glass bottles (fruit juice)
  • Typical formats:
    • 1.0 L VDF (H=307 mm, Ø90 mm)
    • 0.5 L NRW (H=260 mm, Ø68 mm)
• Special capability:
  • Suitable for hot-fill applications
• Label Data
  • 1st cold glue station:
    • Label length: approx. 25 – 140 mm
    • Label height: max. 150 mm
    • Lower edge: max. 15 mm
    • Upper edge: max. 320 mm
  • 2nd cold glue station (incl. wrap capability):
    • Label length: approx. 25 – 140 mm
    • Up to 170° wrap-around of bottle circumference
    • Label height: max. 150 mm
    • Lower edge: max. 15 mm
    • Upper edge: max. 220 mm
  • Applications:
    • Body label
    • Front (chest) label
    • Back label
