Overview

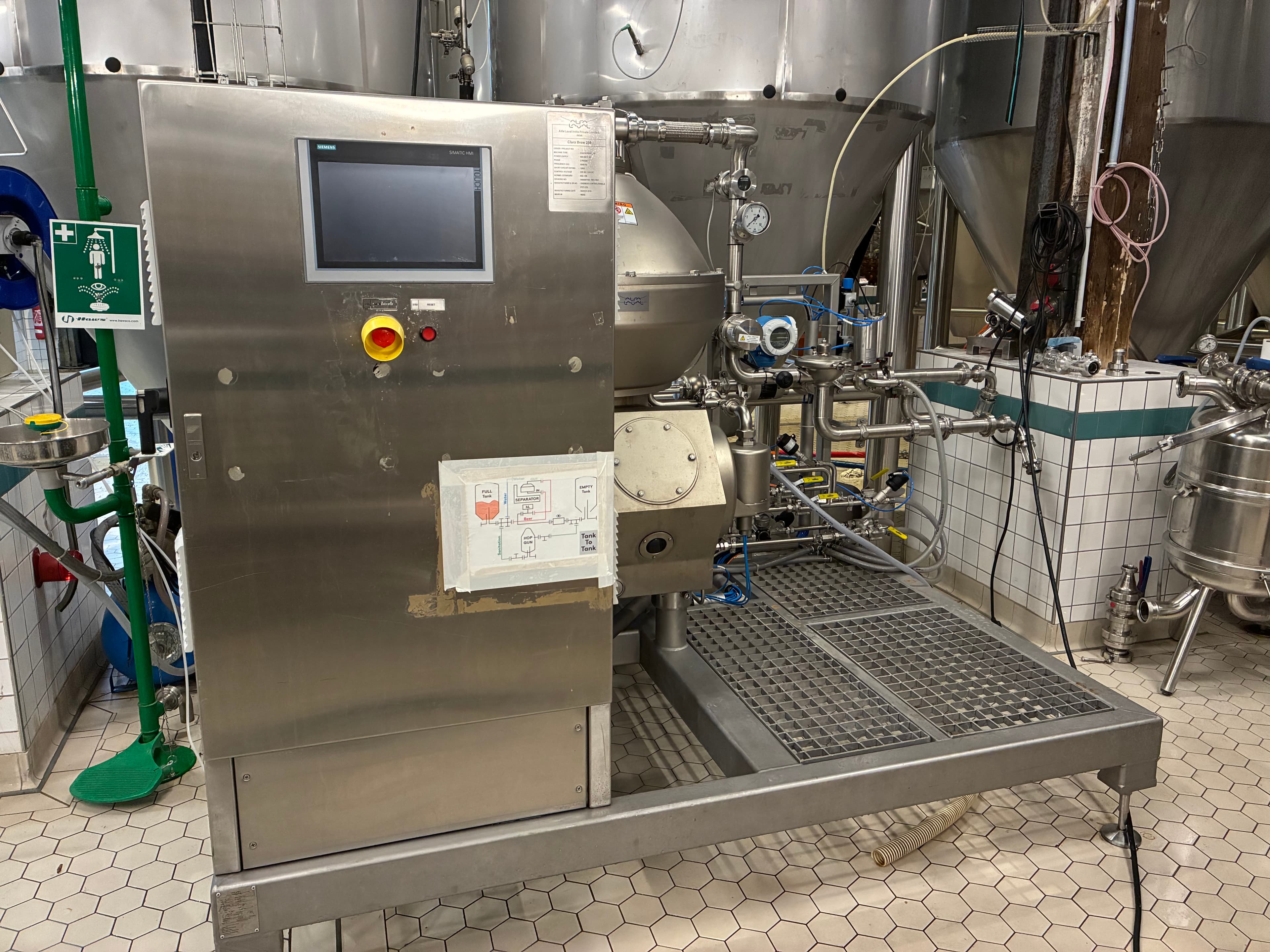

The dynamic beer filtration system 1VDCF-5-5 was manufactured in 2024 by the German company BECA. The filtration system is used to filter beer.

Techn. Data

Whole Plant

• Output: 5 hl/h
• Filter surface area: 5 m²

• Condition: as new

• Weight empty: approx. 800kg (net) + 300 kg (el. cabinet)

• Dimensions (L x W x H): 2300mm x 1300mm x 2200mm

• Dimensions electrical cabinet: 1000mm x 800mm x 2000mm

• Energy requirement: 4kW

• Energy consumption: 0,7-1,0 kW/hl

• Temperature increase: 5°C per minute due to ceramic plates

• Operating pressure: 1-4,5 bar

• Size of the pores: 200nm

Features:

• High quality beers immediately after start up

• Higher dry content of the filtered yeast

• Extremely low energy consumption

• Low maintenance effort

• Filtration at low pressure

• No additional tools or additives required

• Modular design to increase the capacity in future

• Integrated CIP system
